Introduction

Welcome to my Panasonic GH5S advanced manual with tips and tricks. This guide starts from your Menu settings and goes through all aspects of this interesting camera. I know it is a lot of information, but you’ll get the hang of it soon, I promise.

The biggest change in the GH5s is the new dual ISO 10.2-megapixel sensor. This is half the resolution of the 20.2-megapixel sensor in the GH5, but in return offers better performance in low light. Panasonic says users can get up to ISO 51200 native with minimal noise, and up to ISO 204800 when extended ISO is use

I’ll be going over the entire Menu structure in this post, and giving you tips, pointers, and tricks along the way.

Diving into the MENU system

When you switch on your Panasonic Lumix GH5S you’ll be asked to enter a date, time and timezone. This setting is necessary, as all images captured will have a timestamp, making it easy to find your favorite pictures in the future.
After this is setup, press the MENU button. You’ll see a range of icons and pages.

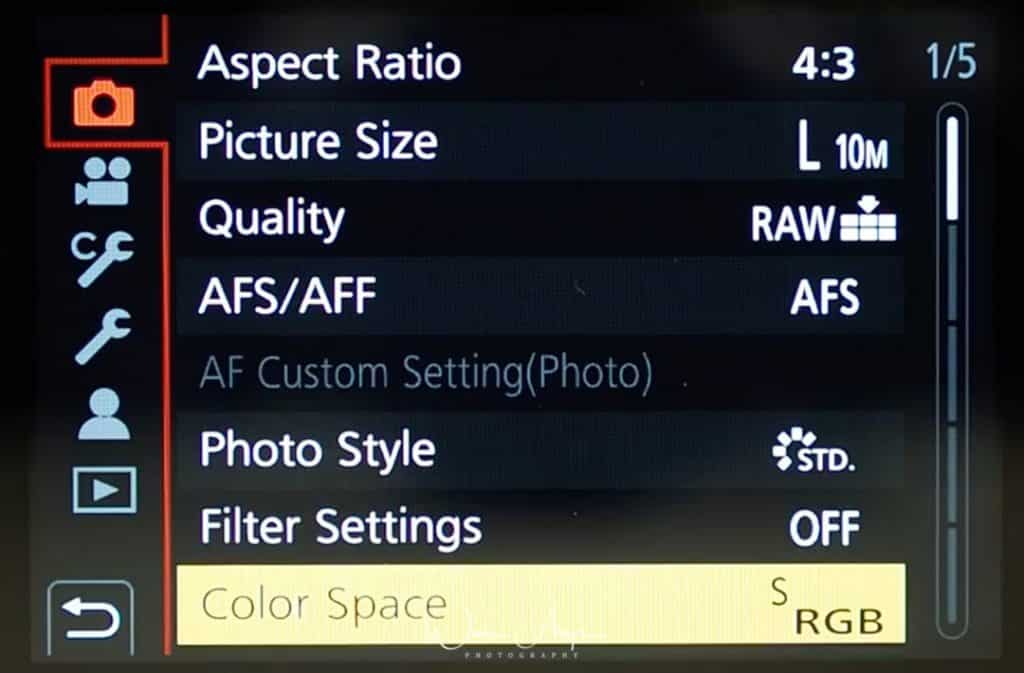

We’ll start on page 1 of the camera Icon (camera settings)

MENU → Camera Icon → page 1 of 5 (also called the Rec menu)

Aspect Ratio

You can change the aspect ratio of your photos here. Changing the aspect ratio can be used as a way to boost your creativity, for instance, landscapes often look great with a 16:9 ratio, or for sharing on Instagram, a 1:1 crop might suit you better.

An M43 (Micro Four-thirds) camera has a native aspect ratio of (not surprisingly) 4:3. You should realize that changing the aspect ratio to anything else than this will actually crop the sensor, meaning that you’ll lose pixels. You should look at it as re-framing your image (like you can do in Lightroom or other photo editors) inside the camera. Jpeg’s will be stored with the chosen ratio, but RAW images (although previewed with the chosen ratio), will still have the full information of the 4:3 sensor retained.

These are the aspect ratios available:

• 4:3: native sensor ratio
• 3:2: the ratio used in full-frame cameras
• 16:9: for a wider looking view
• 1:1: Square aspect ratio, mostly used for social sharing

Picture Size

Picture Size sets the number of pixels for Jpeg. The higher the numbers of pixels, the more detail your pictures will have.

• When the aspect ratio is set to 4:3, you use all the 10 MP of the sensor for a maximum image size of 3680 x 2760.
• When the aspect ratio is 16:9, you only use a wide crop of the sensor for a maximum image size of 4016 x 2256.
• When the aspect ratio is 3:2 you use 17 MP of the sensor and have a 3840 x 2560 image size.
• When the aspect ratio is 1:1, you use 14,5 MP of the sensor for a 2752 x 2752 image size.

The Panasonic GH5S also has a digital teleconverter option, allowing you to zoom in by a factor of times 2 or times 4. This can be a handy feature if you don’t shoot RAW (see the next item for more info).  Thanks to in-body digital processing, the resulting Jpegs actually retain a larger image size than what you’d expect of de facto cropping the sensor by a factor 2 or 4. I would however only recommend using this feature if you’re a die-hard jpeg shooter, since using RAW files and developing your images in Lightroom or another app will almost always get you better results.

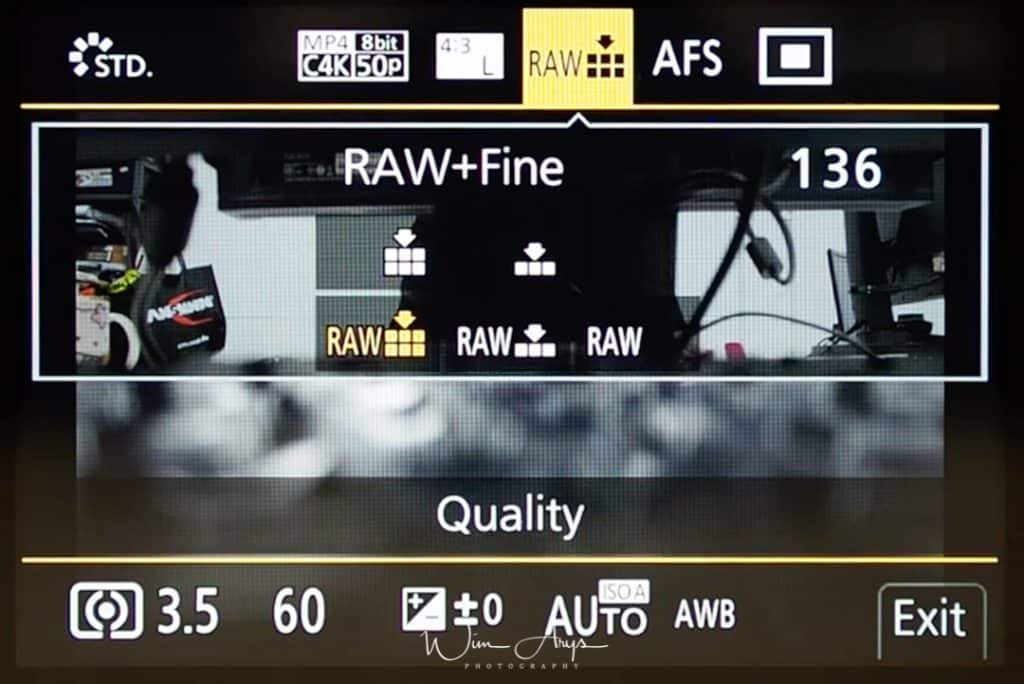

Quality

Probably the most important setting is Quality. You can select either Jpeg, where the RAW data from the sensor is processed by an in-camera algorithm to produce a viewable image, or save your images in this RAW format. RAW retains all the data of the sensor and is meant to be edited afterward in a desktop application like Lightroom or Luminar. Saving as RAW means that you have much more creative freedom afterwards to push shadows or pull highlights, sharpen and enhance your image in any way you please. A Jpeg retains only a fraction of this information, according to the algorithm inside the camera which might or might not suit your style and/or needs.

Hence, my recommendation is always to shoot RAW or RAW Jpeg. This does mean larger files, but SD cards are inexpensive compared to your beautiful new Lumix. But some photographers prefer to shoot in Jpeg only because they are for instance not interested in post-processing images. In this case, I would set the Jpeg to the highest quality setting.

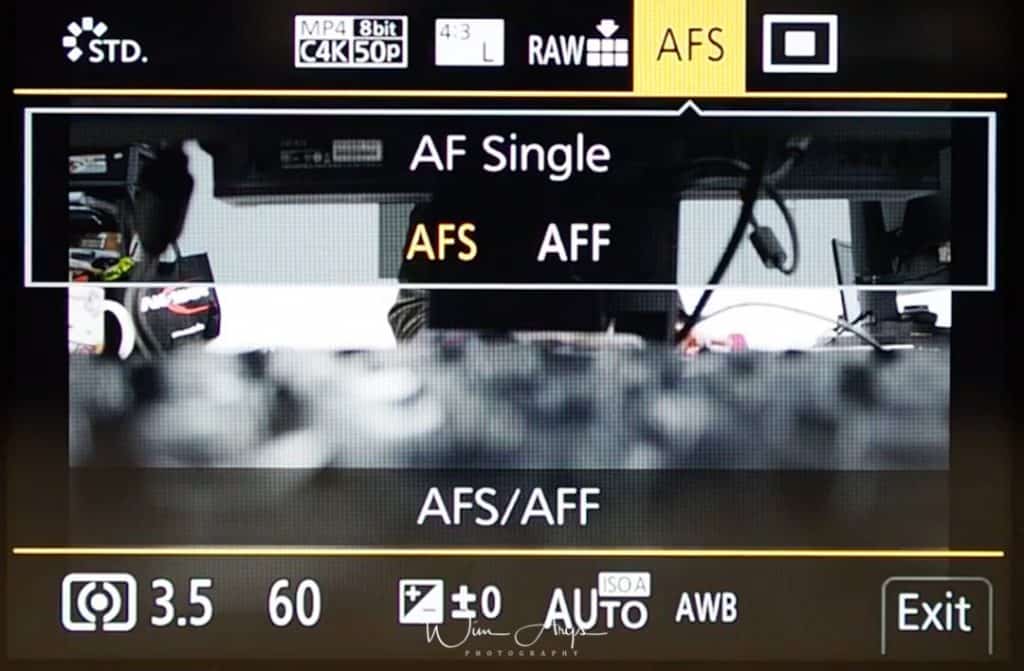

AFS/AFF

AFS is an abbreviation of Auto Focus Single and AFF is an abbreviation of Auto Focus Flexible. In AFS, the focus stays locked while the shutter button is pressed halfway and in AFF focus is continuously readjusted according to the movement of the subject. See AFF as a function between Single AF and Continuous AF.

This can easily be changed by using the dial on the right of the ECF too:



The AFC function below AFS/AFF continuously changes focus according to the movement of your subject.

Some more info on these modes for clarification:

• AFS will find focus and stay focused at that distance until you take a photo or release the shutter button. This is handy if you want to focus and then recompose your shot for instance.
• AFF will do the same unless it detects subject movement, at which time it will temporarily switch to AFC operation in order to re-focus.
• AFC won’t start to seek focus until you half-press the shutter, and will continually evaluate subject movement and change focus as needed.
• With AFS you can lock focus on a particular point, then swing the camera to get the right framing; with AFC, it will not lock focus but will keep re-focusing. That’s why Pinpoint focusing can’t be used with AFC.

AF Custom Setting (Photo)

You can customize the operation settings of Auto Focus for stills here. These presets apply only when you’re in AFF or AFC.

There are 4 Sets (or presets) to choose from:

• Set 1: This is a basic general-purpose setting.
• Set 2: This is a setting suited for scenes where the subject moves in only one direction at a constant speed.
• Set 3: This is a setting suited for scenes where the subject moves in random directions and obstacles are likely to appear in the image.
• Set 4: This is a setting suited for scenes where the speed of the subject changes significantly.

There are three areas in which these presets can be tweaked according to your preferences:

• AF Sensitivity: increase or decrease how sensitive the autofocus readjustment reacts to the movement of your subject.
• AF Area Sensitivity: increase or decrease how sensitive the autofocus readjustment reacts to your subject moving out of the selected AF area.
• Moving Object prediction: For still subjects, you can prevent defocusing caused by a sudden movement of the subject.

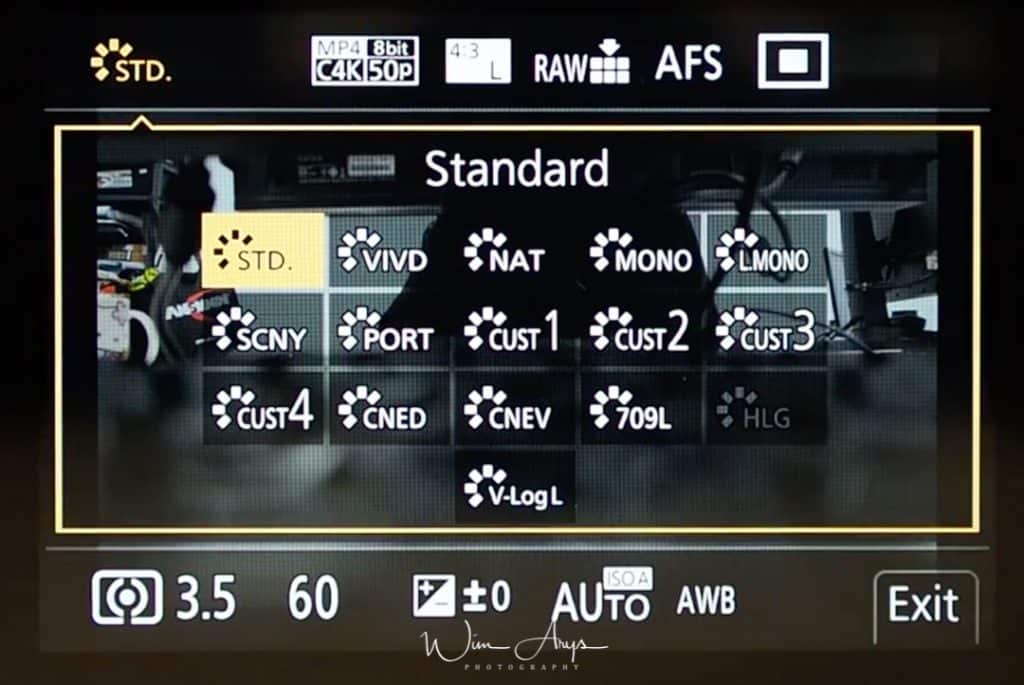

Photo Style

This applies only to Jpeg images, and the RAW preview. You can select a color effect here.

• Standard: standard Panasonic color and contrast rendering.
• Vivid: Brilliant effect with high saturation and contrast.
• Natural: Soft effect with low contrast.
• Monochrome: Monochrome  (black and white)effect with no color shades.
• L.Monochrome: Black-and-white effect with rich gradation and crisp black accents.
• Scenery: An effect appropriate for sceneries with vivid blue skies and greens.
• Portrait: An effect appropriate for portraits with a healthy and beautiful skin tone.
• Custom 1-4: Make your own presets for easy recall when needed.
• Cinelike D: Gives priority to the dynamic range by using a gamma curve designed to create film-like images. Suited for editing.
• Cinelike V: Gives priority to the contrast by using a gamma curve designed to create film-like images.

As mentioned earlier, it’s possible to create your own Photo Style or customize the preset styles. This is basically a way of hacking into the Jpeg engine and adjusting it to your own style and preferences. There are 6 areas that you can alter.

• Contrast: add or decrease the difference between the brightness and the darkness in the picture.
• Sharpness: add a degree of sharpness or make your images softer.
• Noise Reduction: add noise reduction for high ISO shooting.
• Saturation: add more vividness to the colors. Or remove some.
• Color Tone: add a blue, orange, red or green filter to your image.

Filter Settings

The filter Settings go a step further than merely a photo style. These include artistic effects like Low Key, Sepia, Cross Process and retro stylings. You can turn them ON or OFF here, select the effect you want to use and change the settings by using the touch screen. You can also set your camera up to shoot one with and one without an image effect simultaneously.

If you’re wondering how you get to Creative Control mode, you need to set the mode dial to the paint palette.

And simply press up and down to select the image effects. You can also display the selection screen by touching the Recording Mode icon in the recording screen.

These are all the image effects available:

• Expressive
• High Key
• Monochrome
• Silky Monochrome
• Cross Process
• Bleach Bypass
• Fantasy
• Sunshine: you can select the position and size of the light source here.
• Retro
• Low Key
• Dynamic Monochrome
• Impressive Art
• Toy Effect
• Miniature Effect: you can select the portion of your image that is in focus here (and where the blur effect won’t happen)
• Star Filter
• Old Days
• Sepia
• Rough Monochrome
• High Dynamic
• Toy Pop
• Soft Focus
• One Point Color: you can select the color to leave in here by using a color picker.

Color Space

Select either sRGB or Adobe RGB here. Adobe RGB has a greater range of reproducible colors than sRGB, so it might be worth looking into this color space if you print to paper a lot. But remember that you’ll also need a monitor capable of reproducing the larger color range too. And this can often lead to problems when converting to sRGB or editing your images in external applications. Because of all this, I have it set to sRGB.

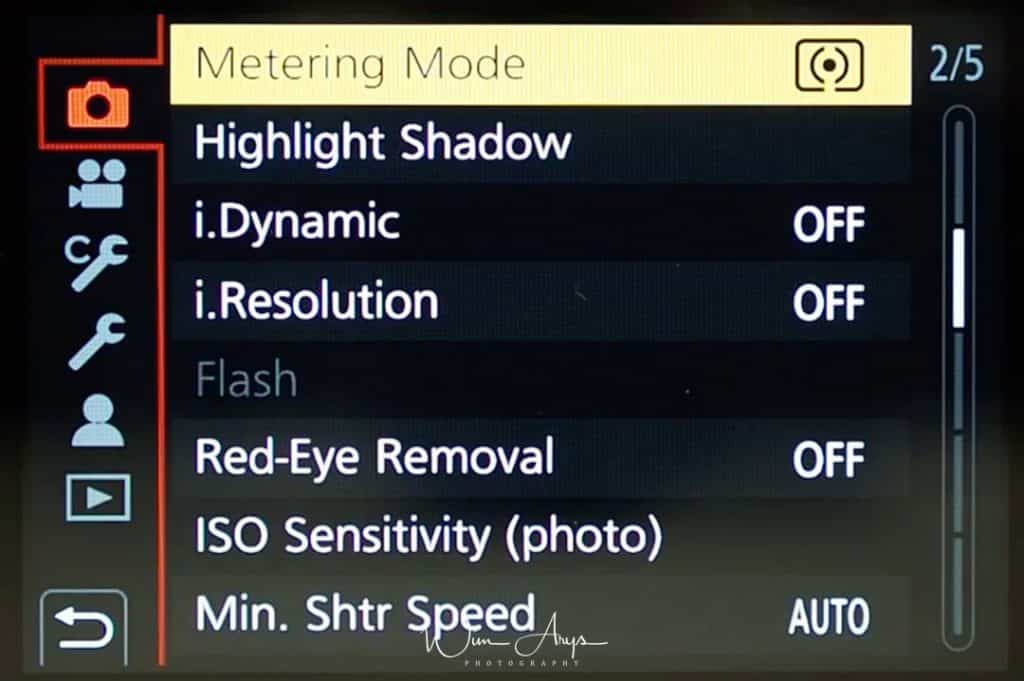

MENU → Camera Icon → page 2 of 5 (also called the Rec menu)

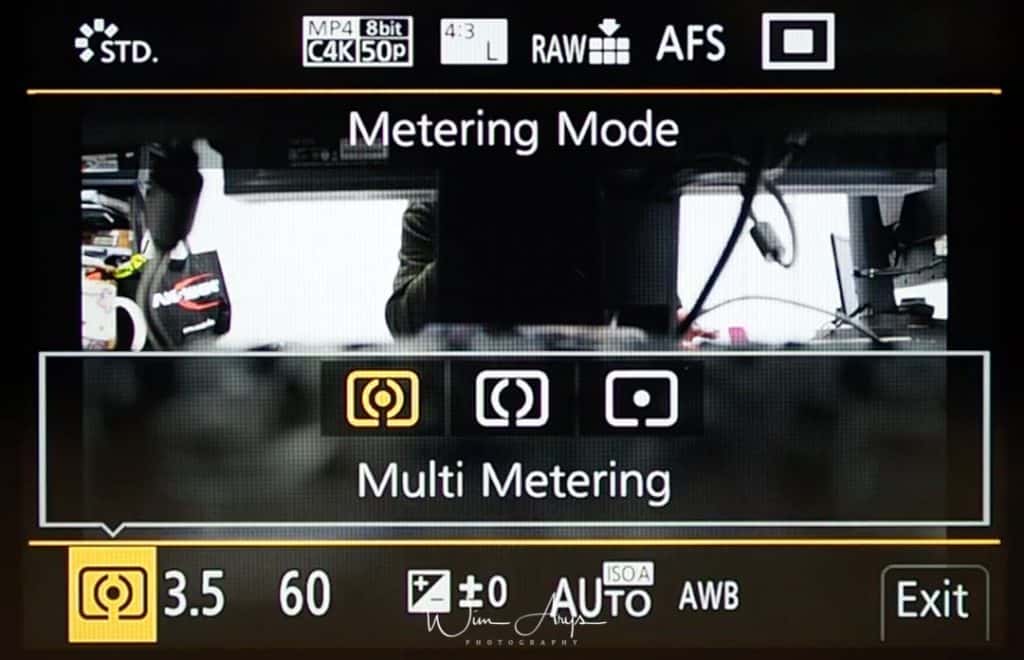

Metering Mode

You can change how the light is metered here, and hence how a correct exposure is calculated by the camera. If you feel that the camera takes over- or underexposed images according to your personal preferences, it might be worth changing the metering mode.

Implementation of this is quite basic in this camera, you have a total of only 3 methods to choose from:

• Multiple: This is the method in which the camera measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.
• Center-weighted: This is the method used to focus on the subject on the center of the screen and measure the whole screen evenly.
• Spot: This is the method to measure the subject in the spot metering target.

Highlight Shadow

This allows you to lighten the shadows and darkens the highlights in your image (or video).  So this is a method of creating balance in your image if you feel like the highlights are too strong or the shadows too dark. You have 4 presets available, and you can also make 3 custom presets yourself:

• Standard: no adjustments are set.
• Raise the contrast: Bright areas are brightened, and dark areas are darkened.
• Lower the contrast: Bright areas are darkened, and dark areas are brightened.
• Brighten dark areas: Dark areas are brightened.
• Custom: make your own preset.

This is how to adjust the parameters for Custom presets:

1. Rotate the front/rear dial to adjust the brightness of bright/dark portions.A – Bright portion
   B – Dark portion
   • The rear dial is for adjusting dark areas, and the front dial is for adjusting bright areas.
   • To register a preferred setting, press ▲, and select the destination where the custom setting will be registered to [Custom1]/[Custom2]/[Custom3].
   • Adjustments can also be made by dragging the graph.
2. Press [MENU/SET].
   • The screen display can be switched by pressing [DISP.] on the brightness adjustment screen.
   • Turning off this unit will return the setting adjusted with  /  /  /  back to the default setting.
   • When [Photo Style] is set to [Like709] or [V-Log L], setting is fixed to [  ] (Standard).

i. Dynamic

This setting will change contrast and exposure when there is a big difference from the darkest area to the brightest are in your image. What really happens is that the camera adjusts the exposure in order to capture more details in the highlights. You can choose between High, Standard, Low or Off.

This naturally causes an under-exposure in the shadow areas. But inside the jpeg engine, the camera will compensate for this by boosting shadows. The downside here is that this will obviously lead to more noise in the boosted regions, but because this is done with data directly coming from the sensor, it can be quite useful if you are a jpeg shooter.

There is also an impact on RAW images because the exposure will be underexposed.

i. Resolution

Another jpeg only functionality, i-Resolution is a form of sharpening. High, Standard, Low, and Off are selectable, and you should see these like the threshold for sharpening in an application like Lightroom. Many photographers discard these intelligent functions, and if you shoot RAW only, it’s not that important for you (except i Dynamic which can change your exposure plus or minus 1/3 stop). But if you shoot jpeg only, you should set it to Low at least, since most of the time RAW files would be sharpened in post-processing too.

Red-Eye Removal

If you use a flash when using Red-Eye Reduction, the camera will automatically detect red-eye and corrects the picture.

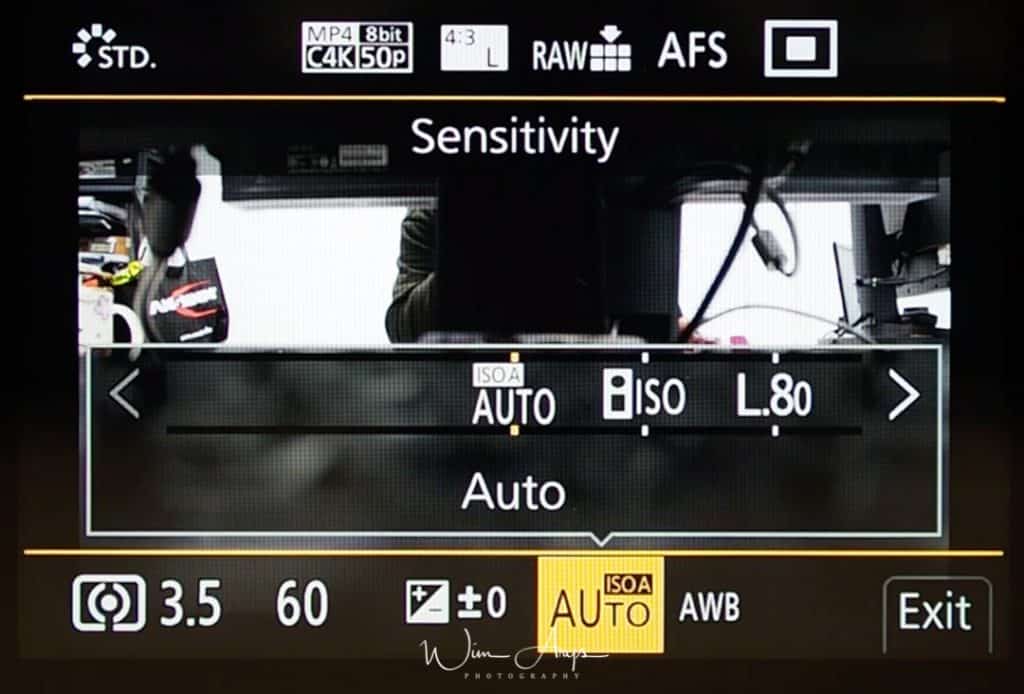

ISO Sensitivity

Sets the upper and lower limits of the ISO sensitivity when you use Auto ISO or i ISO. Lower Limit should be set to 200 and upper limit to 3200, this is the range where you’ll get usable images without too much noise.

Min. Shtr Speed

A very important setting if you feel that the Panasonic GH5S is producing blurry images for your shooting style. Birds in flight, for instance, will need a faster shutter speed than many other types of photography.

Since most of the time, you’ll need to raise ISO to gain faster shutter speeds, Panasonic (and many other camera producers) have made this option available.  You can set it to Auto, or choose a minimum shutter speed up to 1/32000. The latter is a bit high, but as I mentioned, if you shoot action sports or for certain types of nature photography, a minimum shutter speed of 1/1000 or 1/2000 should be set. At these speeds, you can begin to “freeze” action.

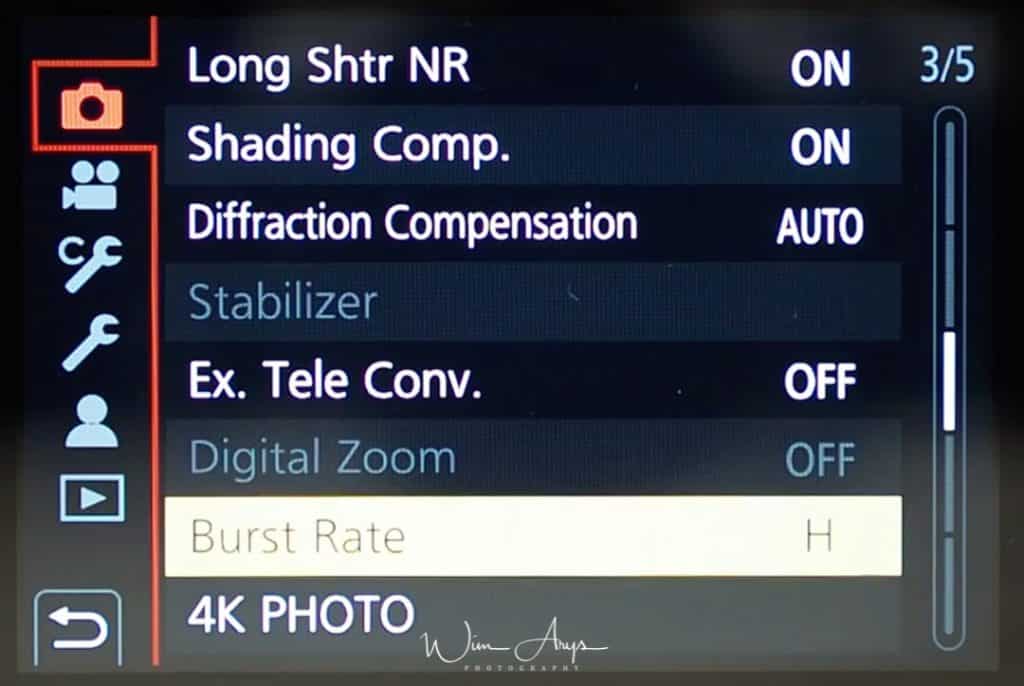

MENU → Camera Icon → page 3 of 5 (also called the Rec menu)

Long Shtr NR

The camera will automatically apply noise reduction to long exposures. This applies to both Jpeg and RAW files. A black frame is taken after your initial shot to measure the noise present. Since many environmental factors (like temperature and location) have an effect on the amount of noise that you’ll see, this is the best way to determine what is noise in your frame. This data is then subtracted from your image for a noise-free (more-or-less) result.

Shading Comp.

All lenses have a lens profile that registers both distortion and shading in the corners at all apertures. These lens profiles can be applied in-camera to counter unwanted vignetting in your images. Especially important for jpeg shooters to turn this on. RAW shooters can apply these corrections later on (and with better results) in a desktop application like DXO optics Pro.

Diffraction Compensation

When you stop down your lens to a smaller aperture (normally from f/11 to f/22), a phenomenon called diffraction causes a loss in sharpness. It happens because light begins to disperse when passing through a small opening. When diffraction compensation is set to ON, the Panasonic GH5S will add sharpening to your image to try and counter this phenomenon. You should use it if you shoot jpeg.

Image Stabilizer

There are many lenses available with an optical image stabilization unit, that physically move glass elements around inside the lens.

It’s also possible to use the in-body sensor stabilization with older, manual primes that don’t relay EXIF information (like most importantly focal length in this case).  You’ll need to manually set the focal length in the Focal length Set function to get optimal performance.

Ex. Tele Conv.

You can digitally enlarge pictures without too much quality deterioration with this function. Only for jpeg use, you can extend the range of your lens by times 1.4 or 1.6 using this function.

Digital Zoom

Digital zoom takes this a step further, allowing you to zoom in up to 4 times for jpegs. I would not recommend either of these functions, as it is better to shoot RAW in this case and crop in processing for the best possible quality.

Burst rate

The drive mode dial has two options for burst shooting. Burst shooting means that you’ll shoot continuously when you press the shutter button. You can apply different Burst Mode settings to Burst Shot 1 and Burst Shot 2 Setting in these menus.

You’ll see SH (for super high burst rates), SH pre (which actually goes back a few seconds in time and saves these images too). These SH modes are only available with the electronic shutter. Version 2 is always faster than version 1.

Then we have High, Medium and Low which work with the Mechanical shutter too. The actual burst rate will be higher if you shoot Jpeg only.

4K Photo

4K photo mode is designed to help you to capture fleeting moments by letting you shoot at up to an incredible 60fps. Continuous autofocus mode is automatically activated and it draws on 4K video technology to shoot 8 MP images at this fast frame rate. You’re basically recording a video where you can extract the frames in-camera.

There are three 4K modes.

Extracting 8Mp stills from the GH5’s 6K Photo Mode footage is pretty easy as follows:

1. Press the play button to located the files. Clips recorded in 4K Photo Mode are marked with the 4K Photo icon to make them easy to identify.
   Once you’ve found the clip you want, either tap the 4K Photo Icon on-screen or the Up navigation key.
2.  If you have a long clip with fleeting moments of action you may like to use the slide bar at the top to quickly scroll to an interesting bit of footage. Alternatively, there’s a playback option (button Fn1) that you can use to play and pause the movie.
3. Once you’ve found the area you’re interested in, tap the Frame View Icon to see a scrollable stack of frames, just swipe right and left to locate the best shots.
4. When you find an image you like, tap the Menu/Set button or 4K Icon to save the image. Images are saved as jpegs.

it’s possible to save all the frames from 5-second sections of your 4K movie. To do this:

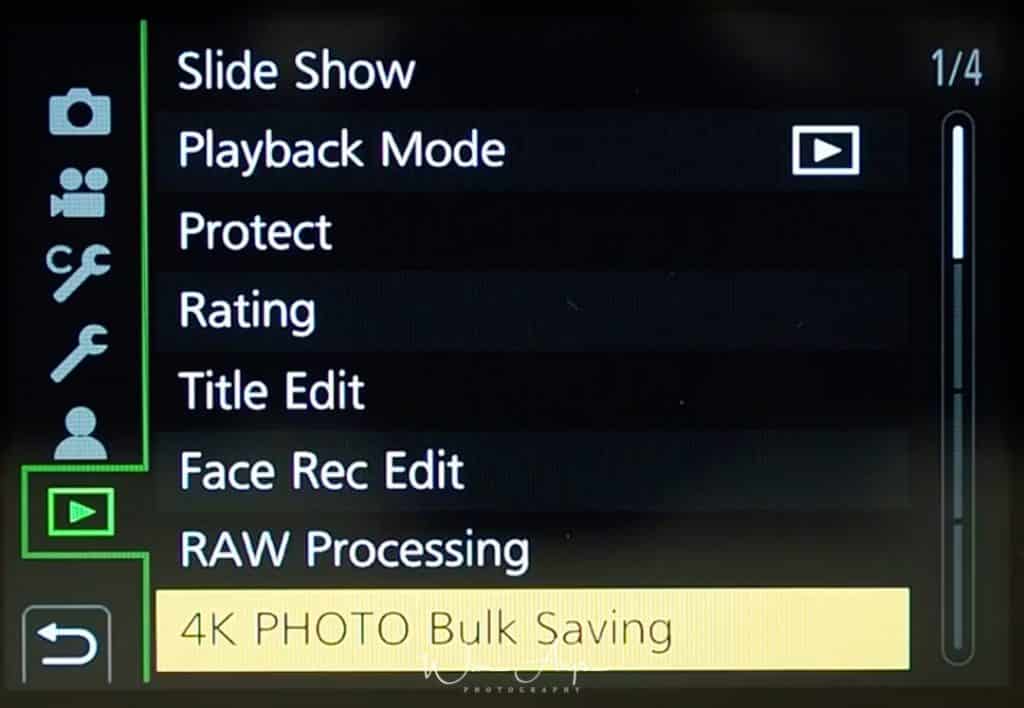

1. Tap the Menu button and scroll down to Playback (the 6th tab), then scroll to the second page of options and select 4K PHOTO Bulk Saving.
2. Then swipe on the screen until you find the clip that you want to extract stills from.
3. Now use the same on-screen movie navigation controls as you used before to find the first frame of the 5 seconds that you want to pull the stills from and tap the 6K Photo icon to save it and the image from the next 5 seconds.

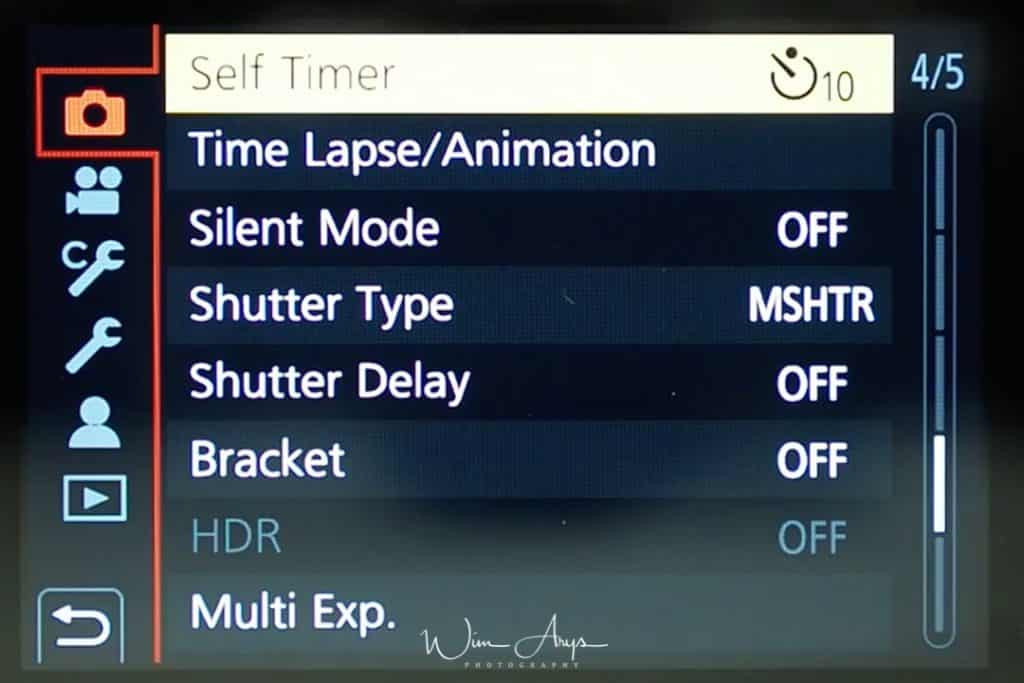

MENU → Camera Icon → page 4 of 5 (also called the Rec menu)

Self Timer

The self-timer function is self-explanatory.  If you actually want to use this function, you’ll need to set the drive mode to:

In this menu, you can select what type of self-timer you’d like to use: a 10-second delay and one-shot, 10 seconds with 3 shots with 2-second intervals or a 2-second delay, all after pressing the shutter.

Time Lapse/Animation

You can take a sequential number of images with relatively long delays in between to achieve a time-lapse movie or stop motion/animation. You’ll need to turn the drive mode dial to Time Lapse for this:

You can choose between Time Lapse or Animation in this menu.

Time Lapse:

1. Switch to Time Lapse Shot if it is not selected.
2. Change the start time and shooting interval according to your preferences.
3. Press the shutter halfway to exit the menu.
4. Press the shutter to start your time-lapse.

Stop motion/Animation

1. Switch to Stop Motion Animation
2. Change auto shooting and shooting interval according to your preferences
3. Press the shutter halfway to exit the menu.
4. Press the shutter to start your time-lapse.
5. Move the subject per frame
6. Press the folder menu to end the recording

Silent Mode

Disables operational sounds and output of light at once for completely silent stealth mode shooting with the Panasonic GH5S.

Shutter Type

You can use either the mechanical or electronic shutter, or 50/50, or let the Panasonic GH5S decide what is most appropriate. The electronic shutter has a maximum speed of 1/32000 sec, the mechanical shutter can go up to 1/8000 second and if you use the Electronic first curtain shutter, you can only go up to 1/2000 second.

• AUTO: Switches the shutter type automatically depending on the recording condition and shutter speed.
• MSHTR: Takes pictures in Mechanical Shutter Mode.
• EFC: Takes pictures in Electronic Front Curtain Mode.
• ESHTR: Takes pictures in Electronic Shutter Mode.

Remember that in artificial light or when using a flash, you best use the mechanical shutter only to avoid artifacts.

Shutter Delay

To reduce the influence of hand shake or shutter vibration, the shutter is released after the specified time has passed. 1, 2, 4 or 8-second delay are selectable. Keep your hands steady and don’t use this delay, else you might miss that critical moment.

Bracket

The Bracket function allows you to take multiple pictures while automatically adjusting a setting like exposure or aperture by pressing the shutter button.

Possible bracket types:

• Exposure Bracket: Press the shutter button and the Lumix will sequentially take multiple images with different exposures. You can select the number of pictures to be taken and the exposure range (from 1/3 EV to 1 EV stops difference).
• Aperture Bracket: Press the shutter button and the Lumix will sequentially take multiple images at different apertures. Either select all apertures or a number of shots (3-5) within a selected range.
• Focus Bracket:Press the shutter button and the Panasonic GH5S will sequentially take multiple images with different focus positions. You can select the distance between focus positions, the number of exposures and the sequence from far to near or the other way around.
• White Balance Bracket: Press the shutter button and the Lumix GH5S will take three pictures with different white balance settings automatically
• White Balance Bracket (color temperature): Press the shutter button once to take three pictures with different White Balance Color Temperature values automatically. You can also set the correction range by touching the up/down slider on the screen.

HDR

You can combine 3 images with different levels of exposure into a single picture with a high dynamic range. This way, you can minimize the loss of gradations in bright areas and dark areas when, for example, the contrast between the background and the subject is large.

Two settings are available:

• Dynamic range: either select Auto where the camera will decide what range of exposure is suitable or manually select plus/minus 1,2 or 3 EV.
• Auto Align: Automatically aligns the resulting images to adjust for movement or not.

Multi Exp.

Multiple exposure is basically laying 2 (or more) images on top of each other. This is different from an HDR or composite shot in the sense that these images should be totally different from each other. It’s a technique the comes from the darkroom photography area where 2 negatives where placed on top of each other to create a totally new image with the two images combined.

How to do this:

1. Press up/down to select start and then press Menu/Set.
2. Decide on the composition and take the first picture. After this first image, press the shutter halfway down to take the next image.
3. Shoot a  third or fourth exposure. all these images will add up to make multiple exposures.
4. Press the down arrow to exit or press the shutter button fully down.
5. Your multiple exposure is finished, and you can view it on the screen.

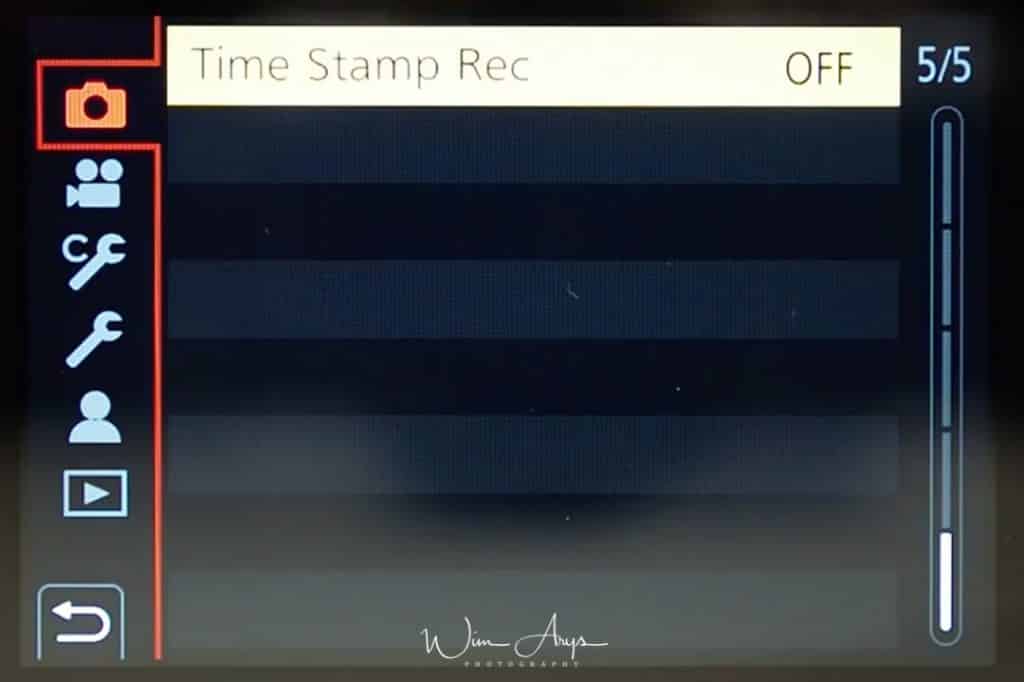

MENU → Camera Icon → page 5 of 5 (also called the Rec menu)

Time Stamp Rec

A timestamp can be printed on your images with the Panasonic GH5S, the data will include hour and day. If you decide to do this, remember that it cannot be deleted afterward.

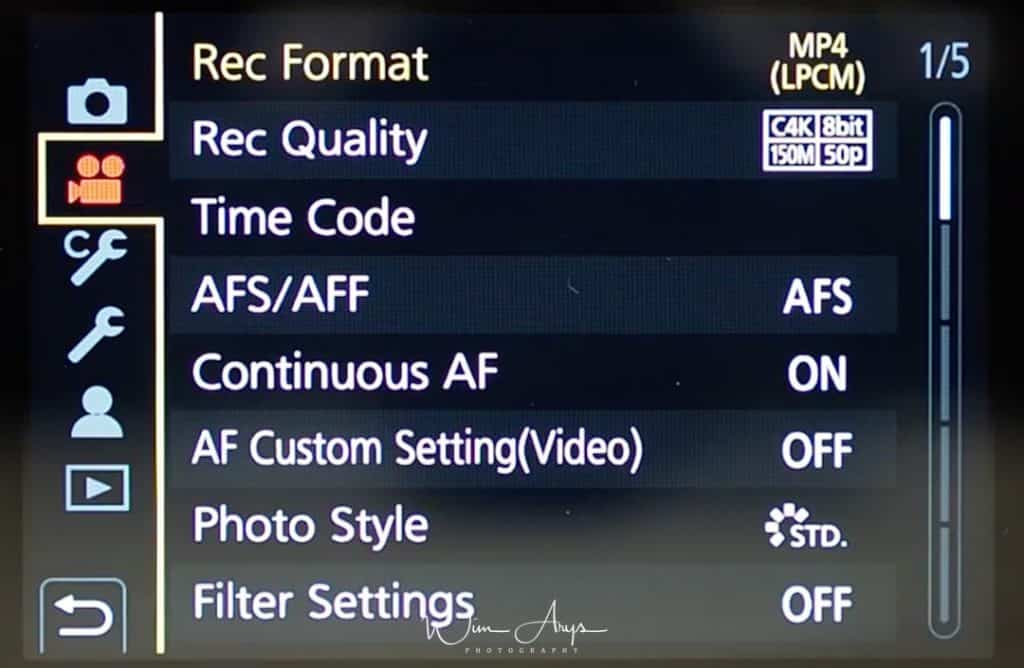

MENU → Film Camera Icon → page 1 of 5  (also called Motion Picture Menu)

These are all movie related settings, and the menu of them is the same as the stills related menu options. YOu can however (obviously) set them up differently for video.

Rec Format

You can either choose to record in AVCHD, MP4, MP4 HEVC, PM4 (LPCM) or MOV format. The higher the Bit rate value is, the higher the picture quality becomes. Since the camera employs the VBR recording method, the bit rate is changed automatically depending on the subject to record. As a result, the recording time is shortened when a fast-moving subject is recorded. Different frame rates and bitrates are selectable per format in the Rec Quality setting.

• AVCHD: Best for HDTV
• MP4: Best for viewing on a PC
• MP4 HEVC: records HDR video.
• MP4 (LPCM): best for creating still from video or shooting to be edited later
• MOV: best for post-processing

Rec Quality

AVCHD

NTSC (59.94Hz):

MP4

NTSC (59.94Hz):

AFS/AFF

AFS is an abbreviation of Auto Focus Single and AFF is an abbreviation of Auto Focus Flexible. In AFS, the focus stays locked while the shutter button is pressed halfway and in AFF focus is continuously readjusted according to the movement of the subject. See AFF as a function between Single AF and Continuous AF.

This can easily be changed by using the dial on the right of the ECF too:



The AFC function below AFS/AFF continuously changes focus according to the movement of your subject.

Some more info on these modes for clarification:

• AFS will find focus and stay focused at that distance until you take a photo or release the shutter button. This is handy if you want to focus and then recompose your shot for instance.
• AFF will do the same unless it detects subject movement, at which time it will temporarily switch to AFC operation in order to re-focus.
• AFC won’t start to seek focus until you half-press the shutter, and will continually evaluate subject movement and change focus as needed.
• With AFS you can lock focus on a particular point, then swing the camera to get the right framing; with AFC, it will not lock focus but will keep re-focusing. That’s why Pinpoint focusing can’t be used with AFC.

Continuous AF

Focusing changes depending on the Focus Mode setting and the Continuous AF setting in this menu.

AFS/AFF/AFC:

• On: The camera automatically keeps focusing on subjects during recording.
• Off: The camera maintains the focus position at the start of recording.

MF

You can use manual focus.

Photo Style

You can select a photo style (like for photography, see above) for video too.

Filter Settings

You can add the image effects (filters) of Creative Control Mode, see the stills info on this above.

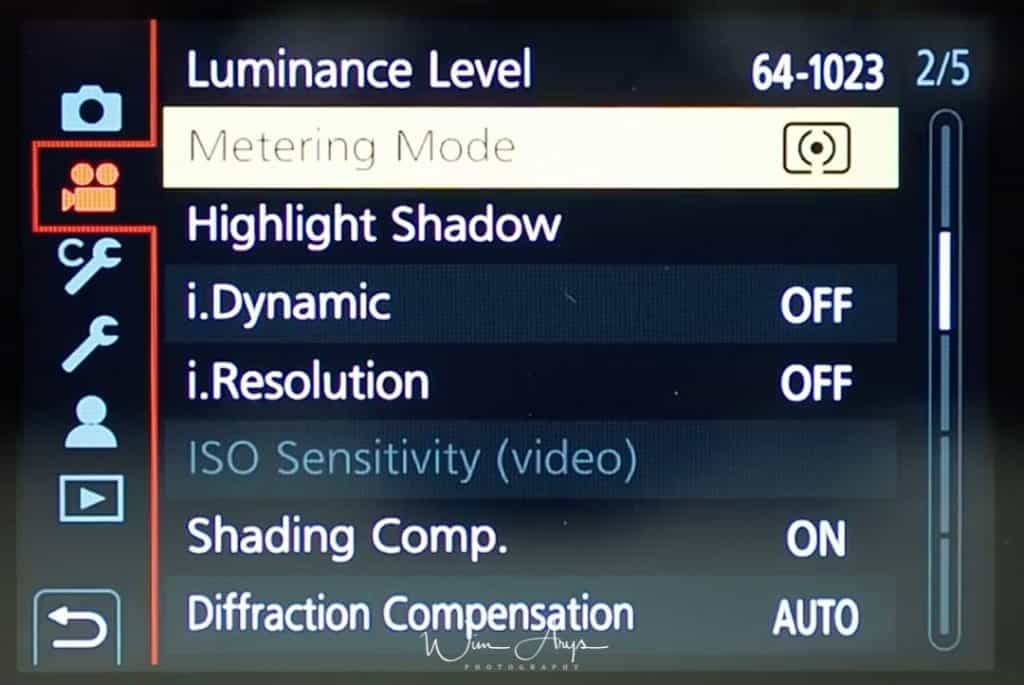

MENU → Film Camera Icon → page 2 of 5 (also called Motion Picture Menu)

Luminance Level

Select the luminance range to match the use of video.

Metering Mode

You can change how the light is metered here, and hence how a correct exposure is calculated by the camera. If you feel that the camera takes over- or underexposed images according to your personal preferences, it might be worth changing the metering mode.

Implementation of this is quite basic in this camera, you have a total of only 3 methods to choose from:

• Multiple: This is the method in which the camera measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.
• Center-weighted: This is the method used to focus on the subject on the center of the screen and measure the whole screen evenly.
• Spot: This is the method to measure the subject in the spot metering target.

Highlight Shadow

This allows you to lighten the shadows and darkens the highlights in your image (or video).  So this is a method of creating balance in your image if you feel like the highlights are too strong or the shadows too dark. You have 4 presets available, and you can also make 3 custom presets yourself:

• Standard: no adjustments are set.
• Raise the contrast: Bright areas are brightened, and dark areas are darkened.
• Lower the contrast: Bright areas are darkened, and dark areas are brightened.
• Brighten dark areas: Dark areas are brightened.
• Custom: make your own preset.

For more info, see the equivalent setting for the photos above.

i.Dynamic

This setting will change contrast and exposure when there is a big difference from the darkest area to the brightest area in your image. What really happens is that the camera adjusts the exposure in order to capture more details in the highlights. You can choose between High, Standard, Low or Off.

This naturally causes an under-exposure in the shadow areas. But inside the jpeg engine, the camera will compensate for this by boosting shadows. The downside here is that this will obviously lead to more noise in the boosted regions, but because this is done with data directly coming from the sensor, it can be quite useful.

i.Resolution

i-Resolution is a form of sharpening. High, Standard, Low, and Off are selectable, and you should see these like the threshold for sharpening in an application like Lightroom. Many photographers discard these intelligent functions, and if you shoot RAW only, it’s not that important for you (except i Dynamic which can change your exposure plus or minus 1/3 stop).

ISO Sensitivity

Set the upper and lower limits of the ISO sensitivity when it is set to AUTO.

Shading Comp.

All lenses have a lens profile that registers both distortion and shading in the corners at all apertures. These lens profiles can be applied in-camera to counter unwanted vignetting in your images.

Diffraction Compensation

When you stop down your lens to a smaller aperture (normally from f/11 to f/22), a phenomenon called diffraction causes a loss in sharpness. It happens because light begins to disperse when passing through a small opening. When diffraction compensation is set to ON, the Panasonic GH5S will add sharpening to your image to try and counter this phenomenon.

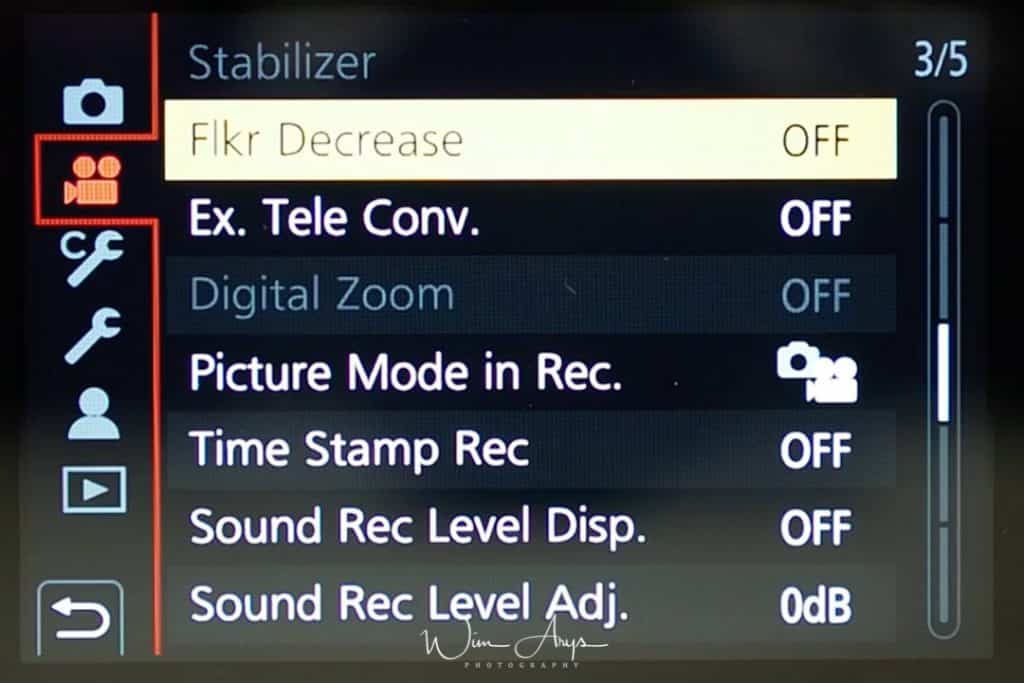

MENU → Film Camera Icon → page 3 of 5 (also called Motion Picture Menu)

Stabilizer

The Panasonic Lumix GH5S has a stabilized sensor. The sensor inside the camera is suspended on a magnetic field and can compensate for movement like the minute shakes of your hands or any other kind of movement. There are also many lenses available with an optical image stabilization unit, that physically move glass elements around inside the lens to do the same. Both systems have their pros and cons, and it is generally accepted that a stabilized sensor works better for wide-angle lenses (below 40mm) whilst optical lens stabilization is more efficient for the tele range. It is also possible to use both systems at the same time (called Dual I.S.), where you’ll take advantage of the best of both worlds.

Flkr Decrease

The shutter speed can be fixed to reduce the flicker or striping in your movies. 1/50,/1/60,1/100 or 1/120 seconds are available.

Ex. Tele Conv.

You can digitally enlarge movies without too much quality deterioration with this function. You can extend the range of your lens by times 1.4 or 1.6 using this function.

Digital Zoom

Digital zoom takes this a step further, allowing you to zoom in up to 4 times.

Picture Mode in Rec.

You can record still pictures while recording a movie on the Panasonic GH5S. During movie recording, press the shutter button fully to record a still picture when turned On. The aspect will always be 16:9.

There are 2 settings available:

Video Priority

• Pictures will be recorded with a picture size determined by the Rec Quality setting for motion pictures.
• Only JPEG images are recorded when Quality is set to Raw (still pictures will be recorded in jpeg)
• Up to 80 still, pictures can be recorded during the recording of the motion picture. (Up to 20 still pictures during 4K motion picture recording)

Photo Priority

• Pictures will be recorded with the set picture size and quality.
• The screen will go dark while recording pictures. A still picture will be recorded in the motion picture during that period, and audio is not recorded.
• Up to 20 still, pictures can be recorded during the recording of the motion picture. (Up to 10 still pictures during 4K motion picture recording)

Time Stamp Rec

Puts a time and date stamp on your recorded videos. Once turned on, this cannot be removed afterward.

Sound Rec Level Disp.

Select if you want to display the microphone level on the recording screen.

Sound Rec Level Adj.

Adjust the sound input level to 19 different levels (-12 dB to +6 dB).



MENU → Film Camera Icon → page 4 of 5 (also called Motion Picture Menu)

Sound Rec Level Limiter

The Panasonic GH5S adjusts the sound input level automatically, minimizing sound distortion (clipping noise) when the volume is too high.

Wind Noise Canceller

This will reduce the wind noise coming into the built-in microphone while maintaining sound quality. You can choose either High, Standard or Off. This function works only with the built-in microphone.

Lens Noise Cut

You can reduce the zoom sound of an interchangeable lens compatible with power zoom that is produced during motion picture recording. This function works only when an interchangeable lens that supports power zoom is used. (All micro-four-thirds lenses made by Panasonic)

Special Mic.

Only available only when you use an external stereo shotgun microphone like the Panasonic DMW-MS2. You have a few options on how to use a microphone like this:

• Stereo: Allows stereo recording of sound over a wide area.
• Lens Auto: Allows recording within the range that is set automatically according to the angle of view of the lens.
• Shotgun: Allows recording from one direction by shutting out the background and surrounding noise.
• S.Shotgun: Allows recording within the range even narrower than that of [SHOTGUN].
• Manual: Allows recording within the range you set manually.

Mic Socket

Select what is plugged into your mic socket.

• Mic Input (powered by the camera): When your mic socket works as a mic input, power is supplied to an external mic by the camera.
• Mic: a mic is plugged in that does not need to be powered by the camera.
• Line: The Mic socket works as a line input. Power is not supplied by the camera.
• Sound Output

You can record motion pictures while hearing the sounds that are being recorded by connecting commercially available headphones to this unit.

Sound Output

You can switch the sound output:

• Realtime: Actual sound without time lag. It can be different from the audio recorded in the movie.
• Rec Sound: Sound that is being recorded in motion pictures. The audio may be output slower than the actual audio. If you use the HDMI output during recording, the setting is fixed to this.

XLR Mic adaptor setting

This item is only available when using an XLR Microphone adapter.

• 96kHz/24bit: Records High-resolution sound at 96Khz /24 bit (when rec format is set to MOV)
• 48kHz/24 bit: records sound at 48kHz/24 bit (when set to MOV)
• 48kHz/16 bit: sound is recorded at 48 kHz, 16 bit
• OFF: Sound will be recorded with the built-in microphone.

HDMI Rec Output

Settings for your HDMI output when recording to an external recorder like the Atomos Shogun/Ninja.

• Info Display
• Down Convert
• HDMI Recording Control
• LUT HDMI Display

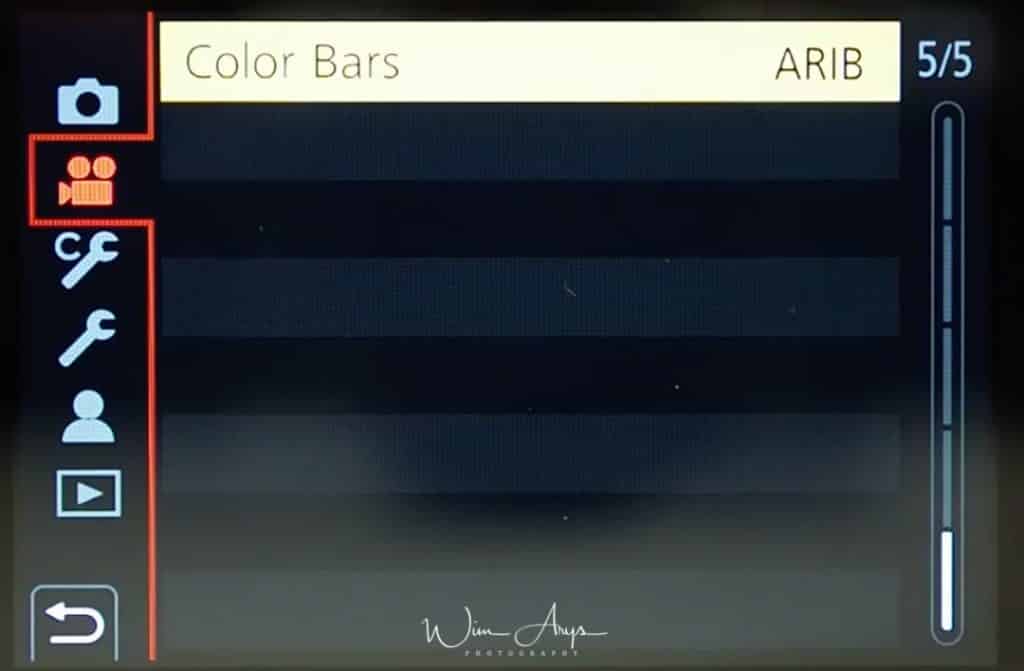

MENU → Film Camera Icon → page 5 of 5 (also called Motion Picture Menu)

Color Bars

You can display color bars and output a test tone. You can set the test tone level from among three options (s12 dB, s18 dB, and s20 dB). SMPTE, EBU or ARIB bars are available.

MENU → Custom Tool (Custom Menu)

You’ll find all customizable settings of the Panasonic GH5S in this Menu.

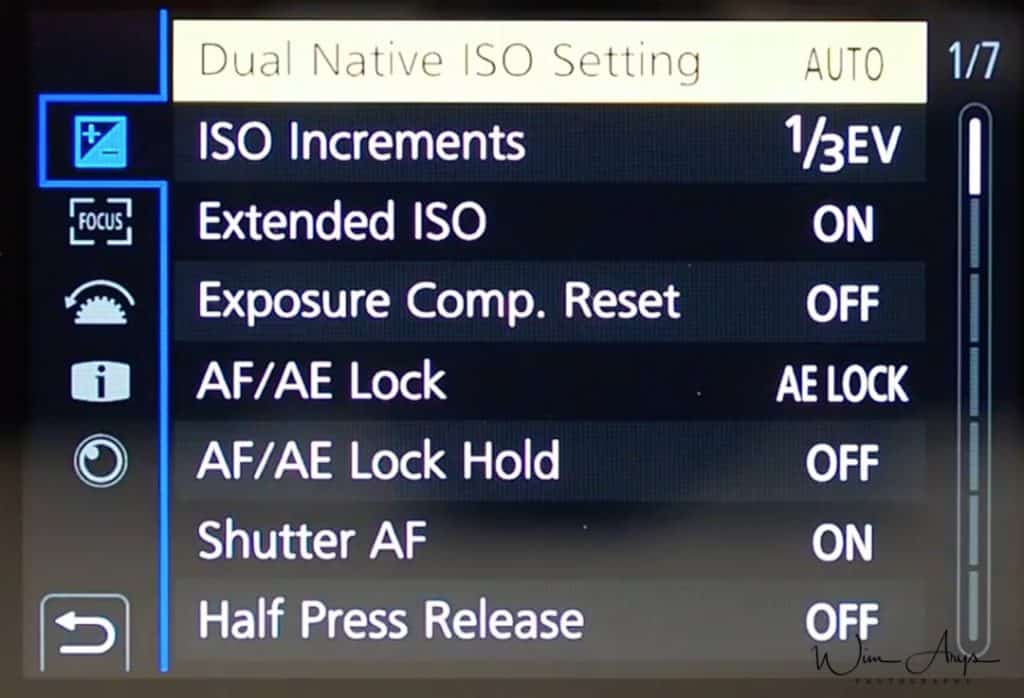

Exposure Menu page 1 of 7 (Exposure and Shutter button behavior settings)



Dual Native ISO setting

The Panasonic GH5s uses a dual gain architecture for better results at high ISO.  When using higher ISO’s, a traditional sensor will increase the gain of the base ISO of the sensor. This increase in gain will also boost the noise level already inherently present at base ISO. A dual gain architecture sensor like this has two analog gain paths for each pixel. One is used for base ISO as usual, the second analog gain path is used for a higher iso (2500 in this case).  This means that instead of having to boost the sensor digitally from ISO 200, you’ll basically start the process from zero gain once you reach ISO 2500. This leads to less noise at higher ISO.

The available ISO range varies depending on the Dual Native ISO Setting.

• Auto: ISO 160 to 51200 (80 to 204800 Extended). Sensitivity changes automatically depending on the brightness and other recording conditions.
• Low: ISO 160 to 800
• High: ISO 800 to 51200

Note: Even if you select Low or High in Intelligent Auto Plus or Creative mode, this setting will work the same way as in Auto. (Automatically)

ISO Increments

Choose the increments of exposure changes between 1/3 EV or 1 EV.

Extended ISO

ISO sensitivity can be set up to a minimum of ISO 100. Base ISO of the sensor is 200, so this extended ISO basically halves this in software, with a slight decrease in quality.

Exposure Comp. Reset

Exposure value can be reset when the Recording Mode is changed or the camera is turned off.

AF/AE Lock

Lock focus and exposure with AF/AE LOCK. To clear the lock, press AF/AE LOCK again.

AF/AE Lock Hold

When ON is selected, focus and exposure stay locked even if you press and release AF/AE LOCK. To clear the lock, press AF/AE LOCK again.

Shutter AF

Set whether or not the focus is adjusted automatically when the shutter button is pressed halfway.

Half Press Release

The shutter will immediately fire when the shutter button is pressed halfway when this is ON.

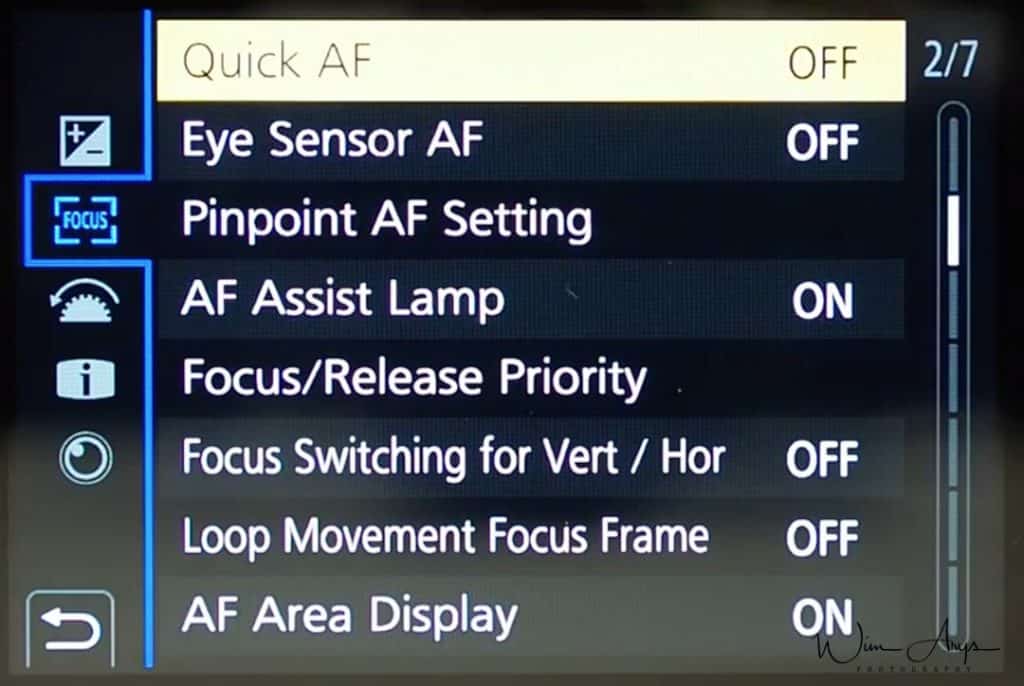

Focus Menu page 2 of 7 (more Focus/Release Shutter settings)

Quick AF

As long as the camera is held steady, the camera will automatically adjust the focus and focus adjustment will then be quicker when the shutter is pressed. You’ll get better AF performance at the expense of battery life.

Eye Sensor AF

The Panasonic GH5S will automatically start autofocus when the eye sensor is activated.

Pinpoint AF Setting

The screen will be zoomed in when the shutter is pressed halfway, selectable in full screen or in a window.

AF-point Scope Setting

The methods for displaying the magnification window. View magnification full screen or picture in picture.

AF Assist lamp

AF assist lamp will illuminate the subject when the shutter button is pressed half-way making it easier for the camera to focus when recording in low light conditions. The range is about 1 meter.

Focus/Release Priority

Set whether to give priority to focus or shutter release during Auto Focus. Setting it to Focus priority means you won’t be able to take an image if the focus is not acquired. Release will.

Focus Switching for Vert / Hor

Memorises separate positions for horizontal and vertical orientations (two vertical orientations, left and right, are available).

Loop Movement Focus Frame

When setting the AF area position or the MF Assist display position, you can now loop the position from one edge to the other edge of the screen.

AF Area Display

Selects whether you want to see a visual representation of your selected AF area on the screen.

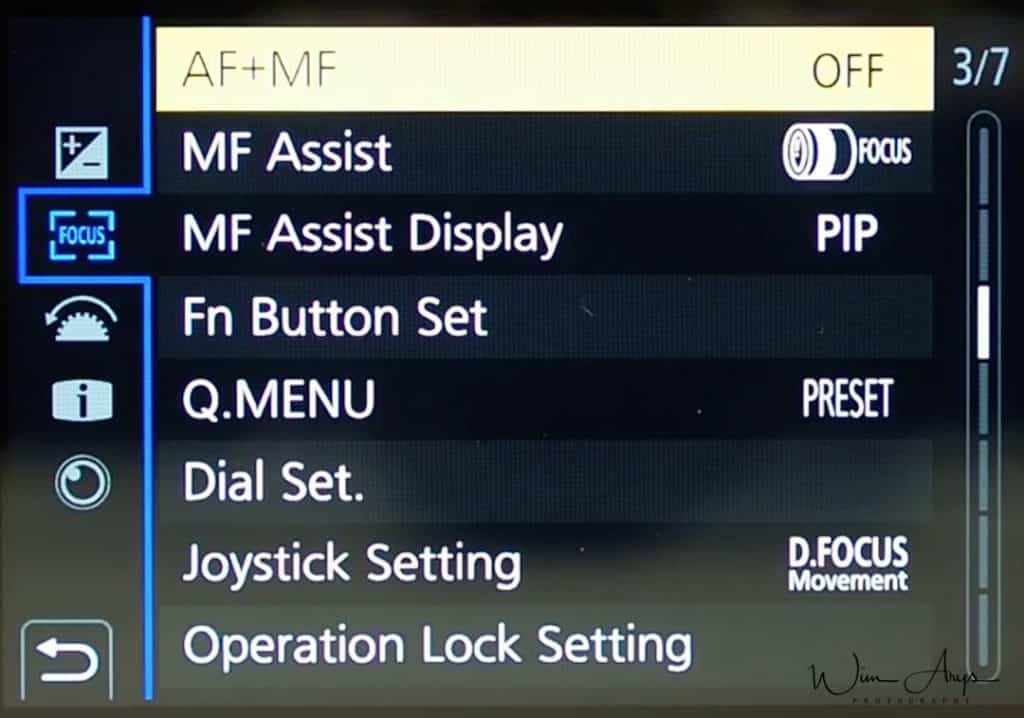

Focus Menu page 3 of 7 (more Focus/Release Shutter settings)

AF+MF

When AF Lock is ON (press the shutter button halfway with the focus mode set to AFS or set AF Lock using AF/AE LOCK), you can make fine adjustments to the focus manually.

MF Assist

Sets the display method of MF Assist (enlarged screen) on the Panasonic GH5S.

MF Assist Display

Sets whether MF Assist (enlarged screen) will appear in a windowed screen display or in a full-screen display.

Fn Button Set

You can assign various features, such as recording functions, to specific buttons and icons as well as the function lever.

1. Press up/down to select the function button you want to assign a function to and then press MENU/SET.
2. Press up/down to select the function you want to assign and then press [MENU/SET].

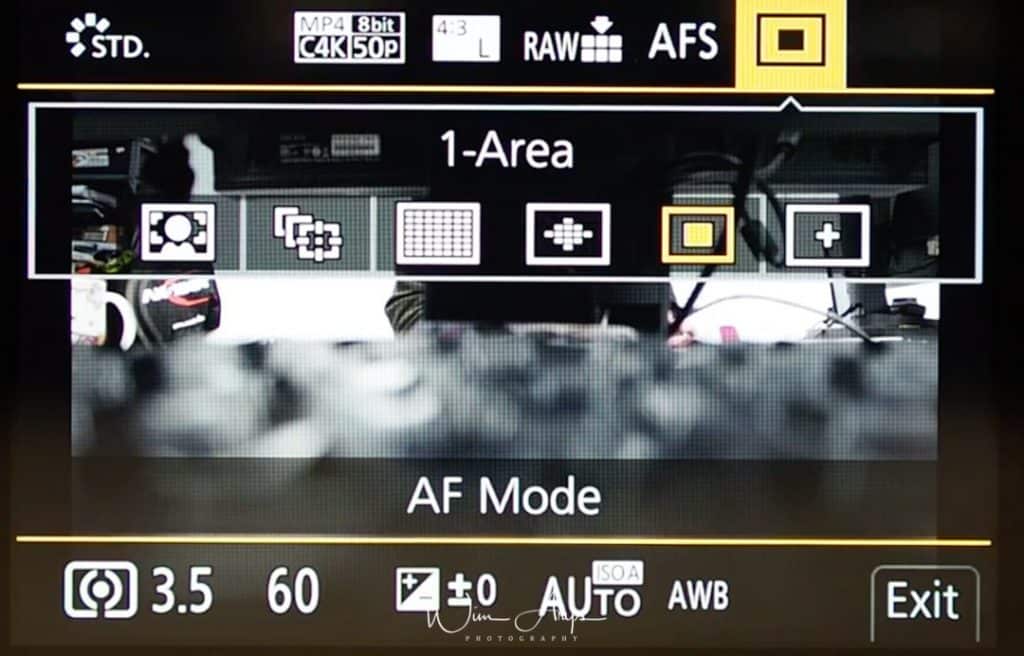

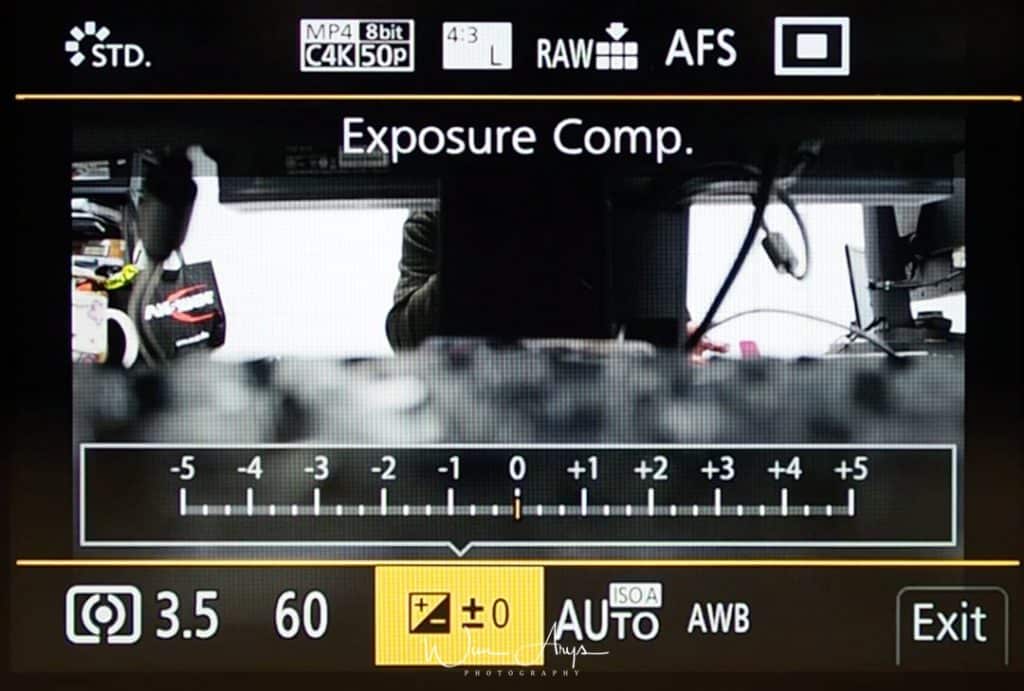

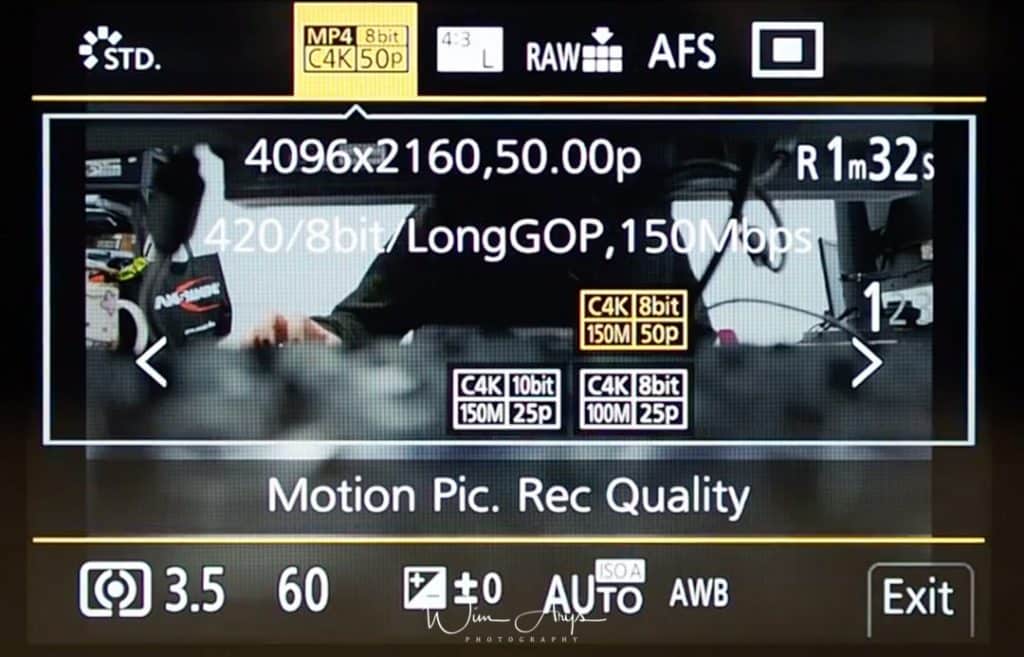

Q.MENU

In Custom operations, you can customize the Q Menu according to your liking.

You can add a maximum of 15 preferred settings to the Quick Menu.



1. Press Q.MENU to display the Quick Menu.
2. Press down to select the custom tool and then press MENU/SET.
3. Press the left/right arrow to select the menu item in the top row and then press MENU/SET.
4. Press left/right to select the empty space in the bottom row and then press MENU/SET. (You can also set the menu item by dragging it from the top row to the bottom row)
5. Press return to switch to the recording screen.

Dial Set.

Assign Dial (F/SS): Assigns the operations of the aperture value and shutter speed in Manual Exposure Mode.

Rotation (F/SS): Changes the rotation direction of the dials for adjusting the aperture value and shutter speed.

Control Dial Assignment: It sets the item to be assigned to the control dial while the recording screen is displayed.

Exposure Comp.: Assigns the Exposure Compensation to the front dial or rear dial so that you can directly adjust it.

Dial Operation Switch Setup: Sets the items to be assigned temporarily to the front/rear dials when you press the function button to which Dial Operation Switch is assigned.

Joystick Setting

The joystick provides the same functions as the cursor buttons MENU/SET button.

Operation Lock Settings

Sets the control functions on the Panasonic GH5S to be disabled with the function button Operation Lock. Cursor, Joystick and Touch screen can be turned off.

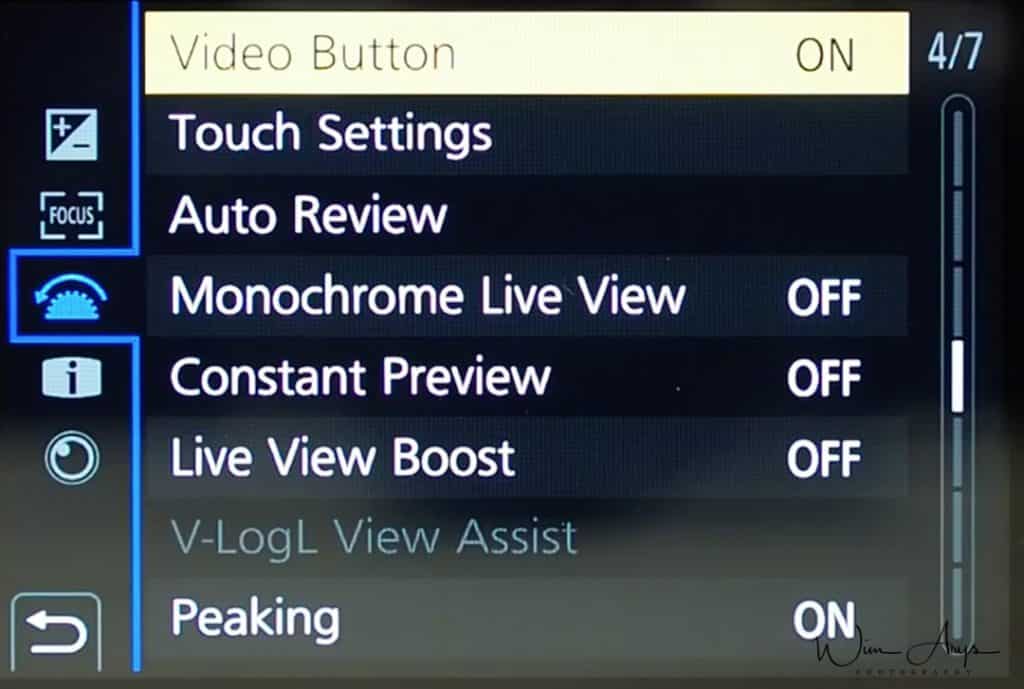

Operation Menu page 4 of  7 (dial and buttons operation settings)



Video Button

Enables/disables the motion picture button.

Touch Settings

Enables/disables the Touch operation.

• Touch Screen: All touch operations are turned on.
• Touch Tab: Operations of tabs are enabled.
• Touch AF: Operation to bring the subject you touch into focus AF or adjust the focus and brightness AF+AE are enabled.
• Touch Pad AF: Operation to move the AF area by touching the monitor when the viewfinder is in use.

Auto Review

Displays a picture immediately after it is taken.

Monochrome Live View

You can display the recording screen in black and white. Recorded images will not be affected.

Constant Preview

You can check the effects of the chosen aperture and shutter speed on the recording screen in Manual Exposure Mode. Some camera makers call this Live View.

Live view boost

The screen will appear brighter than the captured image so you can check the composition in a low-light environment, such as at night.

V-LOGL view assist

• LUT Select: Allows you to select the LUT data that is used between the preset options (Vlog_709) and registered LUT data.
• LUT Monitor Display: Allows you to set the display on the monitor/viewfinder of your camera use when Photo Style is set to V-Log L.

Peaking

In-focus portions (portions on the screen with clear outlines) are highlighted when the focus is being adjusted manually. A great focussing aide for manual focussing. It can be set to High or Low.

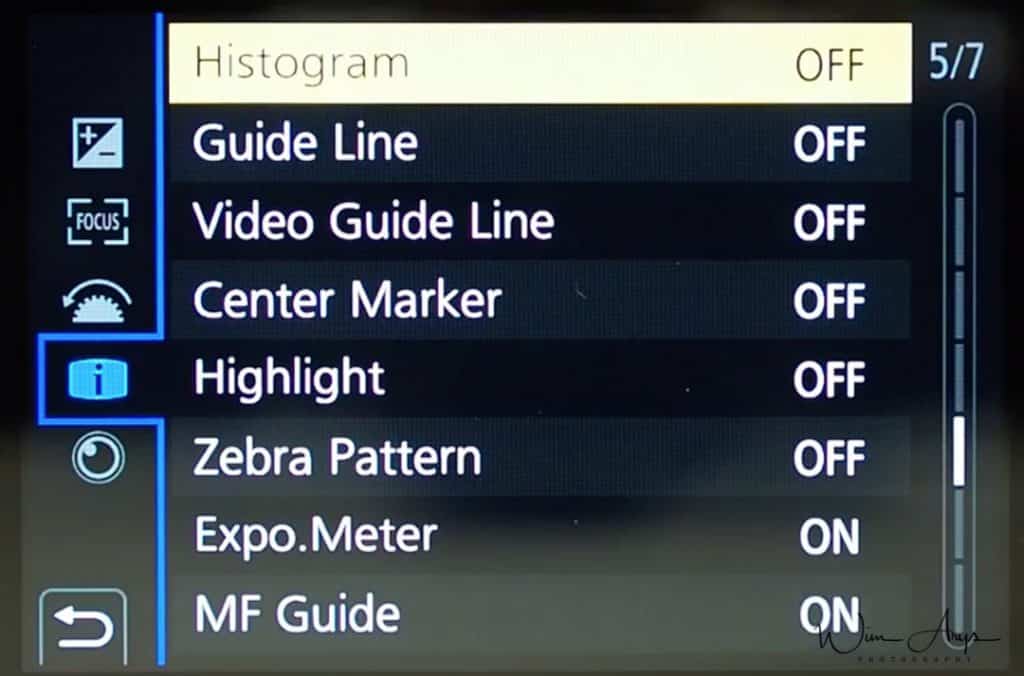

Monitor/ Display Menu page 5 of 7 (settings for the display)

Histogram

Display the histogram. A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis. It allows you to easily check a picture’s exposure.

Guide Line

This will set the pattern of guidelines displayed when taking a picture.

Center Marker

The center of the recording screen will be displayed as [+].

Highlight

When the Auto Review function is activated or when playing back, white saturated areas appear blinking in black and white.

Zebra Pattern

Indicates parts that may become white saturated through overexposure in a zebra pattern. You can select a brightness value between 50% and 105%. In Zebra 2, you can select OFF. If you select 100% or 105%, only the areas that are already white saturated are displayed in a zebra pattern. The smaller the value is, the wider the brightness range to be processed as a zebra pattern will be.

Expo.Meter

Display the exposure meter.

• Set to ON to display the Exposure meter when performing Program Shift, setting the aperture, and setting shutter speed.
• Unsuitable areas of the range are displayed in red.
• When the Exposure meter is not displayed, switch the display information for the screen by pressing DISP.
• If no operations are performed for approximately 4 seconds, the Exposure meter disappears.

MF Guide

When you set the focus manually, an MF guide that allows you to check the direction to achieve focus is displayed.

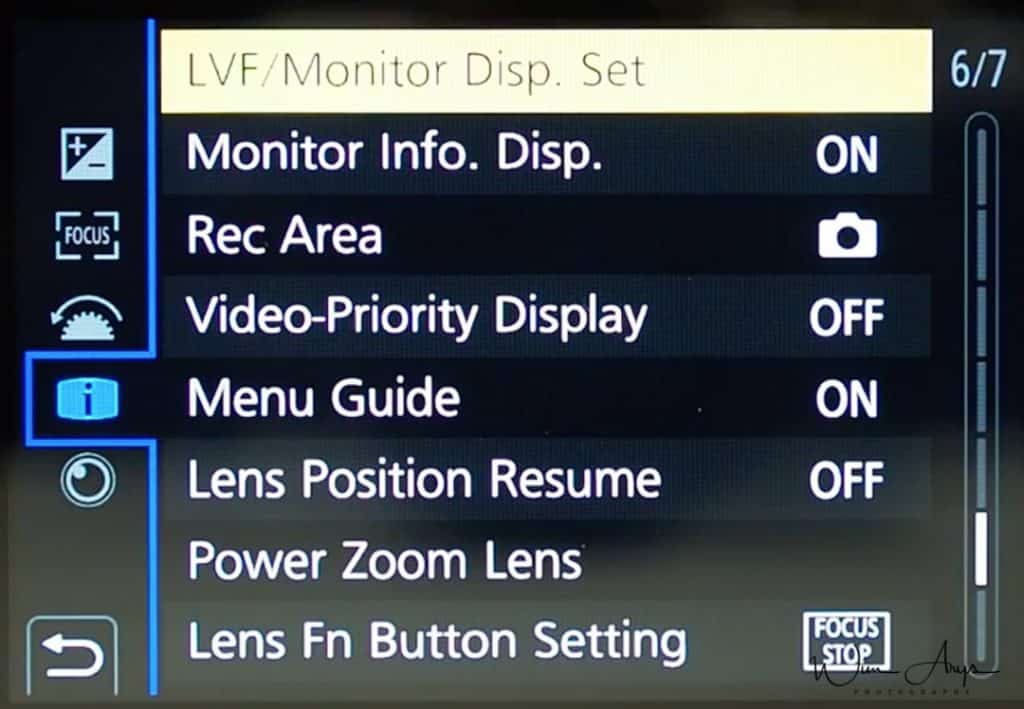

Monitor/ Display Menu page 6 of 7 (monitor and lens behavior settings)

LVF/Monitor Disp. Set

You can select separate screen display styles for the viewfinder and the monitor.

Monitor Info. Disp.

Display the recording information screen.

Viewfinder style: Scales down images slightly so that you can better review the composition of the images.

Monitor style: Scales images to fill the entire screen so that you can see their details.

Rec Area

This changes the angle of view during motion picture recording and still picture recording. Displays the recording area according to the angle of view for still picture recording or video.

Remaining Disp.

This will switch the display between the number of recordable pictures and available recording time.

Menu Guide

Display a selection screen when you set the mode dial to the paint palette icon.

Lens Position Resume

Saves the focus position when you turn off the camera. When an interchangeable lens that is compatible with power zoom is in use, the zoom position is also saved.

Power Zoom Lens

Change the settings for a power zoom lens. Sets the screen display and lens operations when using an interchangeable lens that is compatible with power zoom.

• Disp Focal Length: When you zoom, the focal distance is displayed and you can confirm the zoom position.
• Step Zoom: When you operate the zoom with this setting [ON], the zoom will stop at positions corresponding to predetermined distances.
• Zoom Speed: You can set the zoom speed for zoom operations for both stills and vide to high, medium or low.
• Zoom Ring: When set to OFF] the operations controlled by the zoom ring are disabled to prevent accidental operation.

Lens Fn Button Setting

Sets the function to be assigned to the focus button of an interchangeable lens. You can call up the assigned function by setting the focus selector switch of a compatible interchangeable lens to Fn and then pressing the focus button of the lens.

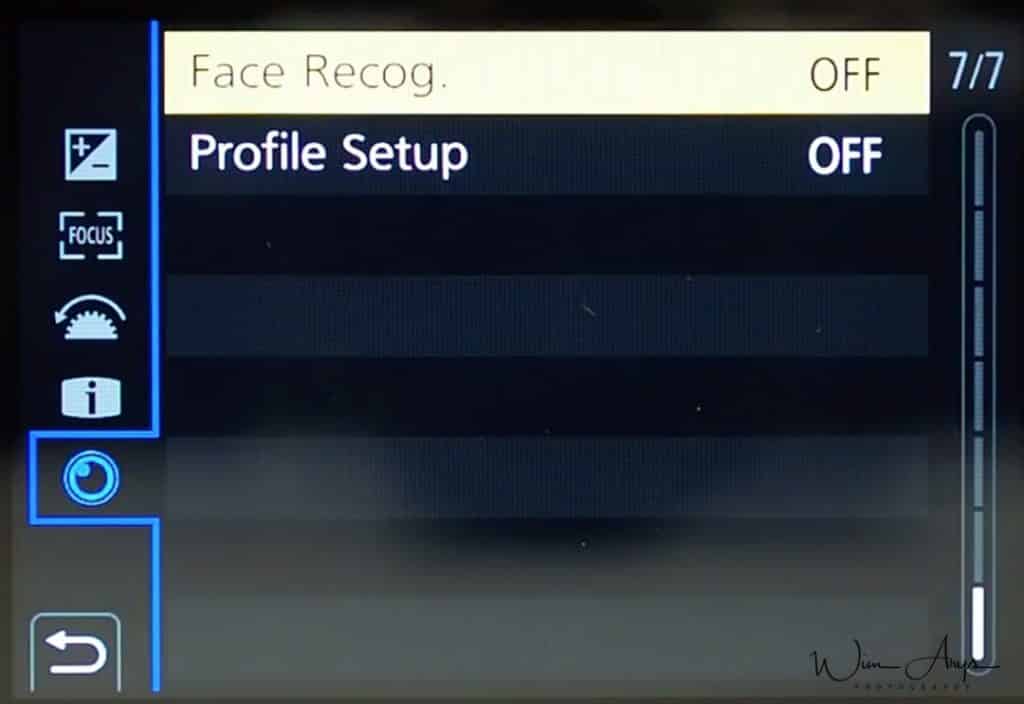

Monitor/ Display Menu page 7 of 7 (monitor and lens behavior settings)

Face Recog.

Face Recognition is a function on the Panasonic GH5S which finds a face resembling a registered face and priorities focus and exposure automatically. Even if the person is located towards the back or on the end of a line in a group photo, the camera can still take a clear picture.

On will automatically recognize faces, but you can also register up to six faces yourself.

1. In this Menu, select an empty frame (or overwrite one).
2. Take a picture of the face you want to register.
3. Register this face. Note that you can register up to 3 images per face for more accurate results.

Profile Setup

If you set the name and birthday of your baby or pet in advance, you can record their name and age in months and years in the images.

MENU → Setup Menu → page 1 of 5 (General Camera Setup)

Online Manual

Display the URL or QR code to go to the online manual.

Cust. Set Mem.

Up to 5 sets of current camera settings can be registered using C1, C2, C3-1, C3-2 or C3-3. The first three are directly accessible via the Mode Dial.

Saving a custom camera is quite simple, set the mode dial to C1, C2 or C3, change the camera’s settings to your preferences, go in the Menu to this setting and press MENU/SET on the screen.

Clock Set

You have already probably set time and date when you first turned on the Panasonic GH5S, but you can also change this here.

World Time

Sets the times for the region where you live (HOME) and your travel destination (DESTINATION). Time and date will be altered to reflect the local time and date at your travel destination.

Travel Date

If you set Travel Setup, elapsed days of your trip i.e. which day of the trip based on its departure and return dates will be recorded The travel date is automatically canceled if the current date is after the return date.

If you set Location, the name of the travel destination that you enter will be recorded.

Wi-Fi

It’s possible to control your Panasonic GH5S with a smartphone or a tablet, display pictures on TV, print Wirelessly, Send images to a PC or use Web Services from Panasonic all via WiFi.

To use the Wi-Fi function on this camera, a wireless access point is needed of course.

By default, Wi-Fi is assigned to the Fn6 button when the camera is in Recording Mode, while it is assigned to Fn1 when the camera is in Playback Mode. You can assign it to any button you want.

When you want to connect to WiFi, simply press this button.

Wi-Fi Setup

The priority of Remote Device: Sets either the camera or the smartphone as the priority control device to be used during remote recording.

Wi-Fi Password: You can improve security by enabling password entry for a direct connection to a smartphone.

LUMIX CLUB: Acquires or changes the “LUMIX CLUB” login ID.

PC Connection: You can set the workgroup. To send images to a PC, a connection to the same workgroup as the destination PC is required.

Device Name: You can change the name (SSID) of this unit.

Wi-Fi Function Lock: To prevent incorrect operation and use of the Wi-Fi function by a third party and to protect saved personal information, protect the Wi-Fi function with a password.

Network Address: Displays the MAC address and IP address of this unit.

Approved Regulations: Displays the certification number for radio regulations.

Bluetooth

You can also connect to your Smartphone, Tablet or TV if your device has the Bluetooth functionality. A function called pairing is needed in order to establish a connection. You’ll find it in this menu, remember to also turn Bluetooth on if you want to do so.

Wireless Connection Lamp

This enables/disables the wireless connection lamp.

MENU → Setup Menu → page 2 of 5 (General Camera Setup)

Beep

This allows you to set the electronic sound and the electronic shutter sound. Remember this will be off if you’re in Silent Mode!

Headphone volume

If you’re using a headphone, you can adjust the volume here.

Economy

These settings will determine the way the camera handles inactivity on your part to save battery life.

Sleep Mode: The camera is automatically turned off if the camera has not been used for the time selected on the setting.

Sleep Mode(Wi-Fi): The camera is automatically turned off if it is not connected to a Wi-Fi network and has not been used for 15 minutes (

Auto LVF/ Monitor Off: The monitor/viewfinder is automatically turned off if the camera has not been used for the time selected on the setting.

Power Save LVF Shooting: If you display the monitor using the viewfinder/monitor automatic switching function, the camera will turn off automatically after being left idle.

Monitor Display Speed

This sets the monitor frame rate to either 30fps or 60fps. 60fps will run smoother at the cost of battery life.

LVF Display Speed

This sets the viewfinder frame rate, to either 30 or 60fps. Again, at 60fps you’ll see movement smoother at the cost of battery life.

Night Mode

This displays the monitor and viewfinder screens in red. It reduces the difficulty in seeing the surroundings caused by brightly-lit screens at night or in any low-light environment.

Monitor Display

Brightness, color, or red or blue tint of the Monitor/viewfinder can be adjusted.

Monitor Luminance

These settings will affect how and when the brightness of the monitor is adjusted.

Auto: The brightness is adjusted automatically depending on how bright it is around the camera.

Mode 1: Makes the monitor brighter than normal.

Mode 2: Set the monitor to the standard brightness.

Mode 3: Makes the monitor brighter than standard.

MENU → Setup Menu → page 3 of 5 (General Camera Setup)

Status LCD Backlight

You can set the LCD Backlight to High, Low or Off.

Eye Sensor

Sensitivity will set the sensitivity of the eye sensor.

LVF/Monitor Switch will set the method for switching between the monitor and viewfinder.

USB Mode

Sets the communication method when connecting using the USB connection cable.

Select on Connection: Select this setting to select the USB communication system when connecting to another device.

PC Storage: Select this setting to export images to a connected PC.

PC Tether: Select this setting to control the camera from a PC installed with supported software.

Pictbridge PTP: Select this setting when connecting to a printer supporting PictBridge.

USB Power Supply

Supplies power via the USB connection cable when the camera is connected to a PC or PowerBank.

TV Connection

Set the format for the HDMI output when playing back on the HDMI compatible TV and monitor connected with this unit using the HDMI cable. It’s possible to set it to Auto or 4K, 1080p, 1080i, etc…

Language

Set the language displayed on the screen.

Version Disp

This enables the firmware versions of the camera and lens to be checked before an upgrade for instance.

MENU → Setup Menu → page 4 of 5 (General Camera Setup)

Folder/File Settings

Set the folder and file name patterns in which images are to be saved.

Double Slot Function

Set the way recording to the card slots 1 and 2 are performed.

• Relay Rec: Relays recording to the other card slot even after the first card runs out of free space during recording. Records the same images to the two cards.
• Backup Rec: Records the same images to the two cards.
• Allocation Rec: Allows you to specify the card slot to be used for recording for different image formats like Jpeg on one and RAW on the other.

Save/Restore Camera Setting

Save the camera’s setup information to the card. Since saved setup information can be imported to the camera, you can apply the same setup to more than one camera.

No.Reset

Reset the file number of the next recording to 0001.

Reset

The following settings are reset to the default:

• Recording settings.
• Setup settings Wi-Fi Setup and Bluetooth settings.
• Custom settings (Face Recog. and[Profile Setup settings.
• Setup/custom settings (except for Wi-Fi Setup, Bluetooth, Face Recog. and Profile Setup).

Reset Network Settings

The following network settings are reset to the default:

• Wi-Fi Setup (Excluding LUMIX CLUB).
• Registered device information in Bluetooth and values in Wi-Fi network settings.

Pixel Refresh

It will perform the optimization of the imaging device and image processing. Use this function when you start seeing hot or dead pixels in your images.

Sensor Cleaning

Dust reduction to blow off the debris and dust that have affixed to the front of the imaging device is performed.

MENU → Setup Menu → page 5 of 5 (General Camera Setup)

Level Gauge Assist

Adjust: Hold the camera in a horizontal position, and press MENU/SET. The level gauge will be adjusted.

Level Gauge Value Reset: Restores the default level gauge setting.

Format

Format the card before recording a picture with this unit.

Since data cannot be recovered after formatting, make sure to back up necessary data in advance.

MENU → My Menu (that little man)

Light Composition

Select multiple frames from 6K/4K burst files that you wish to combine in a composite image. Very cool feature. Parts of the image that are brighter than the preceding frame will be superimposed on the preceding frame to combine the frames into one picture.

My Menu Setting

You can register frequently-used menus and display them in My Menu. You can register up to 23 menus for quick access.

• Add: Specifies the menu to be displayed in My Menu to register it.
• Sorting: Rearranges the menus displayed in My Menu. Select the menu you want to move and set the destination.
• Delete: Deletes registered menus from the displayed menu list.
• Display from my menu: Sets the type of the menu screen to be displayed.

MENU → Playback Menu → Page 1 of 4

Slide Show

ou can play back the pictures you have taken in synchronization with music, and you can do this in sequence while leaving a fixed interval between each of the pictures.

You can also put together a slide show composed of only still pictures, only motion pictures, etc.

You can change the settings for slide show playback by selecting [Effect] or [Setup] on the slide show menu screen.

Playback Mode

Playback in Normal Play, Picture Only or Video Only can be selected.

Protect

You can set protection for pictures you do not want to delete by mistake.

Rating

You can set five different rating levels for images to do the following:

• Delete all the pictures not set as ratings.
• Checking the rating level on the file detail display of an operating system, such as Windows 10.

Title Edit

You can add text (comments) to pictures. After the text has been registered, it can be stamped in prints using Text Stamp.

Face Rec Edit

You can clear and replace all information relating to face recognition in selected images.

RAW Processing

You can process the pictures taken in RAW format. The processed pictures will be saved in JPEG format.

• White Balance: Allows you to select a White Balance preset and adjust it. If you select an item you can process the image with the setting at the time of recording.
• Brightness correction: Allows you to correct the brightness within the range between – 2 EV and +2 EV.
• Photo Style: Allows you to select a photo style effect.
• i.Dynamic: Allows you to select the i.Dynamic setting.
• Contrast: Allows you to adjust the contrast.
• Highlight: Allows you to adjust the brightness of bright portions.
• Shadow: Allows you to adjust the brightness of dark portions.
• Saturation and Color Tone: Allows you to adjust the saturation. (When Monochrome or L.Monochrome is selected in Photo Style, you can adjust the color tone.)
• Filter Effect: Allows you to select a filter effect. (Only when Monochrome or L.Monochrome is selected in Photo Style)
• Noise Reduction: Allows you to adjust the noise reduction setting.
• i.Resolution: Allows you to select the i.Resolution setting.
• Sharpness: Allows you to adjust the resolution effect.

4K PHOTO Bulk Saving

You can save pictures of a 4K burst file that was extracted from any 5 second period at once.

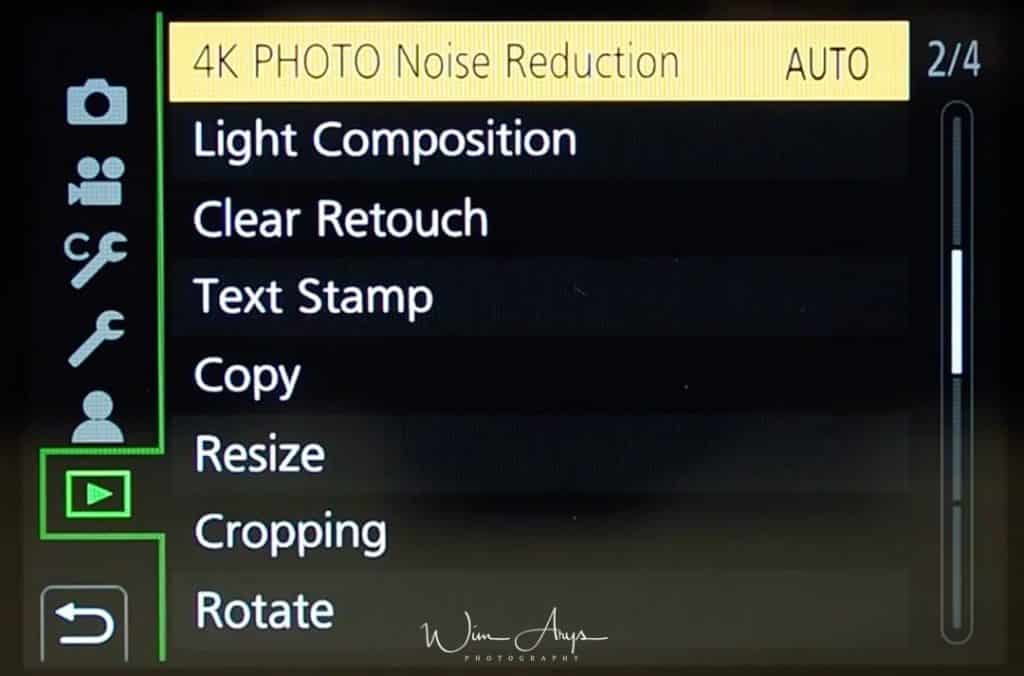

MENU → Playback Menu → Page 2 of 4

4K PHOTO Noise Reduction

When saving pictures, reduce the noise produced during recording by high ISO sensitivity.

Light composition

Select multiple frames from 6K/4K burst files that you wish to combine. Parts of the image that are brighter than the preceding frame will be superimposed on the preceding frame to combine the frames into one picture.

Clear Retouch

Remove unwanted objects and such right from the camera menu. The erasure operation can only be performed by touching. Clear Retouch automatically enables the touch operation.

Text Stamp

You can stamp recording information like names, dates, places on recorded images.

Copy

Copy images on the card to the other card.

Resize

To allow easy posting to web pages, attachment to e-mail, etc., picture size (the number of pixels) is reduced.

Cropping

You can enlarge and then clip the important part of the recorded picture.

Rotate

Rotate pictures manually in 90-degree steps.

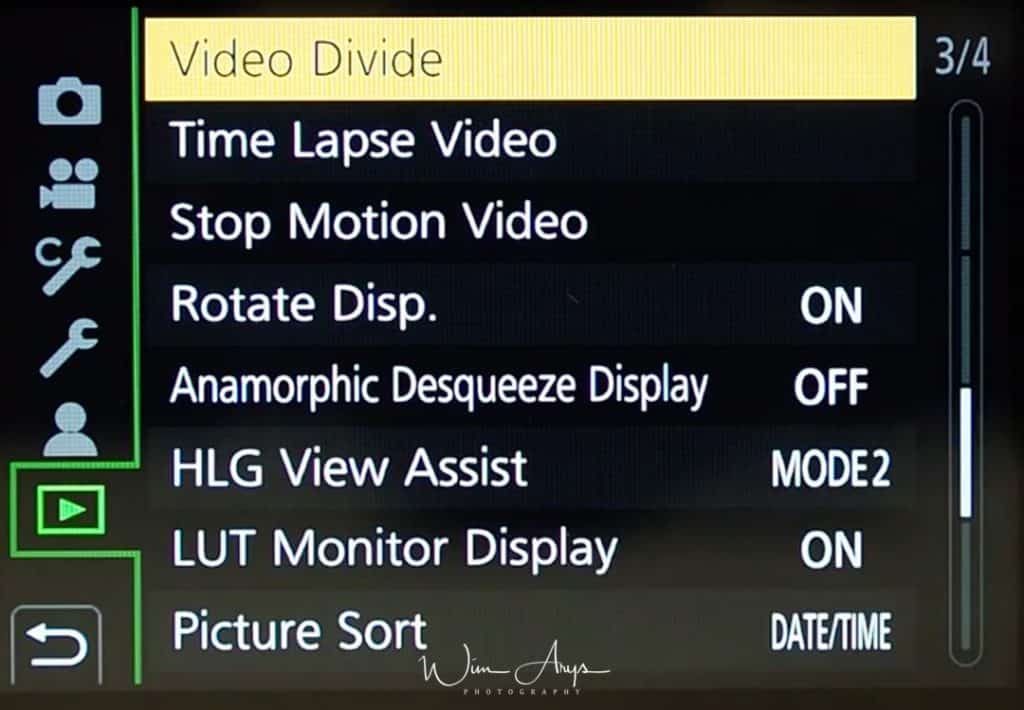

MENU → Playback Menu → Page 3 of 4

Video Divide

Recorded motion pictures and 6K/4K burst files can be divided into two. It is recommended for when you want to divide a part you need a part you do not need.

Time-Lapse Video

This function allows you to create a motion picture from a picture group recorded with Time Lapse Shot.

Stop Motion Video

A Motion picture is created from group pictures taken with Stop Motion Animation.

Rotate Disp.

This mode allows you to display pictures vertically if they were recorded holding the camera vertically.

Anamorphic Desqueeze Display

Lets you view an enlarged image in Cinescope size while recording with 2.0x and 1.33x Anamorphic lens.

LUT Monitor display

The Panasonic GH5 allows users to load custom LUTs as well so that they can preview different looks straight in their camera while shooting in V-Log. LUT Monitor Display needs to be ON in order for this to work.

Picture Sort

You can set the order in which the camera displays images during playback. Either via file name or date/time.

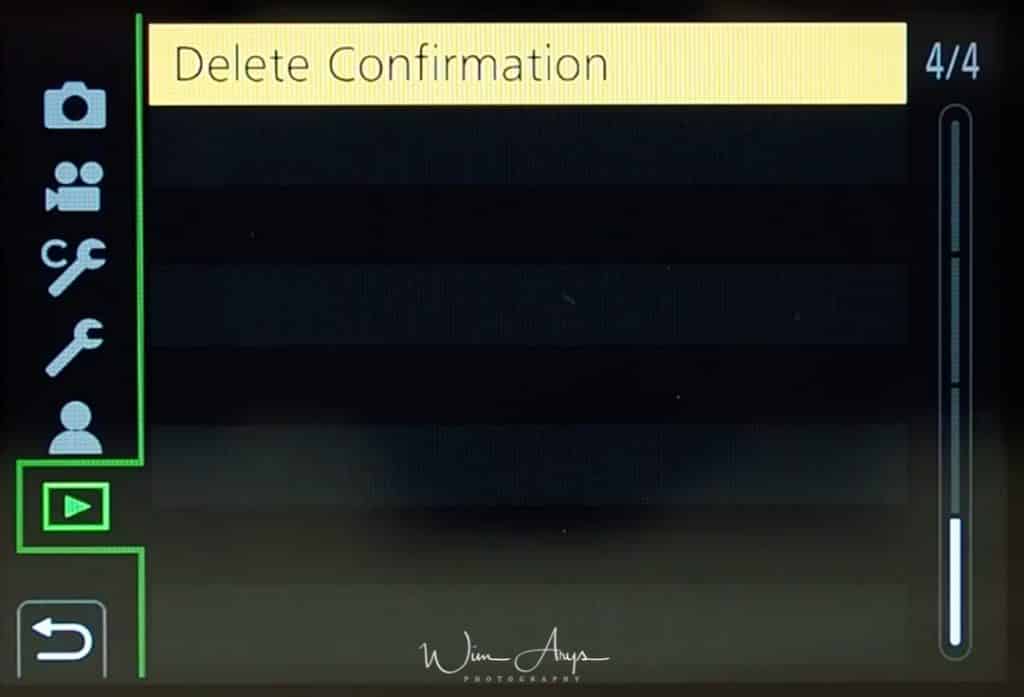

MENU → Playback Menu → Page 4 of 4

Delete Confirmation

This sets which option, Yes or No, will be highlighted first when the confirmation screen for deleting a picture is displayed.

Quick access with the Q Menu (Fn 2)

The most commonly used settings can be accessed through what is called the Q Menu. This is the FN2 button that you’ll find right next to the screen, above the trash bucket button.

Sets the upper and lower limits of the ISO sensitivity when you use Auto ISO or i ISO. Lower Limit should be set to 200 and upper limit to 3200, this is the range where you’ll get usable images without too much noise.

Conclusion

So this was a quick run-through of all the Panasonic Lumix GH5S Menu items, with pointers, tips, and tricks along the way. This information should get you familiarised with this fantastic mirrorless video camera. If you would like any clarification or extra information on any functionality here, let me know through the comment section below. Happy shooting!
