Introduction

Welcome to my Sony A5000 manual with tips and tricks.The Sony A5000 has a 20MP APS-C sensor and contrast detection autofocus system. Although this camera is relatively easy to use, for a beginner it is still very customizable, and this might seem daunting at first.

No worries, I’ve assembled a guide to the essential functions of the Sony A5000, including some tips and tricks.

First things fist: setting up your camera for your use and getting to know the MENU system.

Diving into the MENU system

When you switch on your camera, you’ll be asked to enter a date, time and timezone. This setting is necessary, as all images captured will have a timestamp, making it easy to find your favorite pictures in the future.
After this is setup, press the MENU button. You’ll see a range of icons and pages.

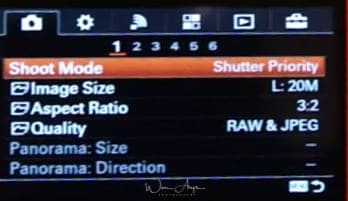

We’ll start at page 1 of the camera Icon (camera settings)

(MENU → Camera Settings → page 1)

Shoot Mode:

• Intelligent Auto (i)
  The Intelligent Auto mode will automatically detect the type of scene you are shooting and adjust accordingly. Once detected, an icon for the recognized scene will appear in the top right-hand corner of the screen.
  Useful for: all-around shooting when you want to simply snap off some photos, with less emphasis on composing a specifically desired shot.
• Superior Auto (i+)
  Superior Auto goes beyond scene type detection, including composite layering for higher dynamic range. Available only when shooting JPEG only.
  Useful for: Similar situation as Intelligent Auto, but when the scenes you are shooting include a wide range of exposure, such as shooting into or out of the shadow.
• Program Auto (P)
  In Program, the camera automatically sets the shutter speed and aperture, leaving the exposure adjustments left to you.
  Useful for: intentionally creating under or overexposed photos.
• Aperture Priority (A)
  Aperture Priority gives you manual control of the aperture of your camera while automatically setting shutter speed and exposure. Adjusting the aperture gives you control of how much of your shot is in (or out of) focus.
  Useful for: controlling the depth of field of your photos, to either isolate your subject by blurring more of the shot, keeping more of the frame in focus.
• Shutter Priority (S)
  Shutter Priority automatically locks in the exposure and aperture for you, and you manually control the shutter speed. This is a great creative tool to either add or subtract movement from your shots by using slower or higher shutter speeds, respectively.
  Useful for: when you want to add or remove motion in your photos by slowing or speeding up the shutter speed.
• Manual Exposure (M)
  Manual Exposure puts you in control of all three of the main adjustments: shutter speed, aperture, and ISO. Auto ISO can be used in Manual mode.
  Useful for: control freaks. Or simply in situations when you know better than (the automatic adjustments made by) your camera.
• Movie (film icon)
  Although capturing video is available in any mode using the MOVIE button to begin recording, setting the camera to Movie mode makes changing video record settings easier. There are four shooting modes within video mode. In Movie mode, press the Select button to switch between:
  • Program Auto automatically selects shutter speed and aperture, leaving the exposure adjustment to you.
  • Aperture Priority gives you control of aperture while setting exposure and shutter speed automatically.
  • Shutter Priority, as you might expect, adjusts exposure and aperture, leaving you to adjust shutter speed.
  • Manual Exposure, finally, gives you control of all three: exposure, aperture, and shutter speed.
• Sweep Panorama (pinched-in rectangle icon)
  Sweep Panorama is a built-in panoramic photo creation mode. With Sweep Panorama shooting mode selected, press the shutter button, then slowly rotate the camera to the right. The camera will take multiple photos and stitch them together into a single, ultra-wide panoramic photo.
  Useful for: Capturing more than what a single frame can offer.
• Scene Selection (SCN)
  Scene Selection lets you select the scene type that is most like the environment you are shooting.
  Useful for: getting the benefits of auto mode in a known scene setting.
  Scene types include:
  • Portrait
  • Sports Action
  • Macro
  • Landscape
  • Sunset
  • Night Scene
  • Hand-held Twilight
  • Night Portrait
  • Anti-Motion Blur

Image size:

The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The smaller the image size, the more images can be recorded.

Image size when the aspect ratio is 3:2:

• L: 20 megapixels or 6000×4000 pixels
• M: 12 megapixels or 4240×2832 pixels
• S: 6.0 megapixels or 3008×2000 pixels

Image size when Aspect Ratio is 16:9

• L: 20 megapixels or 6000×3376 pixels
• M: 10megapixels or 4240×2400 pixels
• S: 5.1megapixels or 3008×1688 pixels

Please note that when Quality is set to RAW or RAW & JPEG, the image size for RAW images is automatically set to L for optimal quality.

If SD card space is an issue, you can set it to Small.

Aspect ratio:

You can choose 3:2 (which uses the full sensor surface) or 16:9 (crop but a more broad view). Leave as is at 3:2, you can always crop your pictures later.

Quality:

Do you edit your pictures on your desktop? If so, set to RAW or RAW+jpeg. A RAW file saves all information the camera pixels register during shooting and will make for better quality images if you want to edit in something like Adobe Lightroom.

A RAW file saves all information the camera pixels register during shooting and will make for better quality images if you want to edit in something like Adobe Lightroom.
A jpeg is a compressed image (available in FINE (larger) and STANDARD (smaller, less quality) which takes up less space on your SD card but is less suited for editing afterward. Jpeg images will also have in-camera noise reduction applied, something you might or might not want to take care of yourself later, depending on your use.

Jpeg images will also have in-camera noise reduction applied, something you might or might not want to take care of yourself later, depending on your use.

Panorama size

(Only available when in panorama shooting mode) Size is selectable between standard and wide. Wide means your picture will cover a larger area. Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Size is selectable between standard and wide. Wide means your picture will cover a larger area. Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Panorama direction

A panorama picture (only available in jpeg) is a composite of several images stitched together. When in this mode, you’ll see an arrow that guides you in what direction and speed you should pan the camera to take the sequential images that will be stitched together. You can choose the path in this menu (either, up, down, left or right).

You can make panoramas while scanning your camera up-down or left-right.So what is this all about? This might sound confusing at first, but this comes down to how you hold the A5000 when shooting panoramas: either in portrait or landscape orientation.

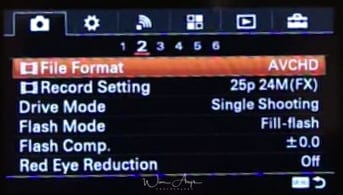

(MENU → Camera Settings → page 2)

File Format

This is where you select what file format you want to use for video.

These are your options:

• AVCHD (default setting): Records HD movies in AVCHD format. This file format is suitable for high-definition TV. You can create a Blu-ray Disc, an AVCHD recording disc, or a DVD-Video disc using the software PlayMemories Home. Audio is recorded in Dolby Digital
• MP4: Records mp4 (AVC) movies. This format is suitable for WEB uploads, e-mail attachments, etc. Audio: AAC

AVCHD is a far superior codec than plain MPEG-4. AVCHD is based on MP4 but is a much cleaner, much more advanced.

Record setting

Also for video functionality only. You can choose the quality of recorded video here. You can change the image size, frame rate, and image quality for movie recording. The higher the bitrate, the higher the image quality. If you’re not familiar with this, leave as is.

When File Format is set to AVCHD:

• 60i/50i: Movies are recorded at approximately 60 frames/sec (for 1080 60i-compatible devices) or 50 fields/sec (for 1080 50i-compatible devices). Also in interlaced mode, with Dolby Digital audio, in AVCHD format.
• 24p/25p: Movies are recorded at approximately 24 frames/sec (for 1080 60i-compatible devices) or 25 frames/sec (for 1080 50i-compatible devices). Also in progressive mode, with Dolby Digital audio, in AVCHD format.
• 60p/50p: Movies are recorded at approximately 60 frames/sec (for 1080 60i-compatible devices) or 50 frames/sec (for 1080 50i-compatible devices). Also in progressive mode, with Dolby Digital audio, in AVCHD format.

When  File Format is set to MP4:

• Movies shot are recorded in MPEG-4 format, at approximately 30 frames/sec (for 1080 60icompatible devices) or about 25 frames/sec (for 1080 50i-compatible devices), in progressive mode, with AAC audio, mp4 format.

Menu items details:

When  File Format is set to AVCHD:

• 60i 24M(FX)*: 50i 24M(FX)**: Records high image quality movies of 1920 × 1080 (60i/50i). Bit-rate: Approx. 24 Mbps (Max.)
• 60i 17M(FH) (default setting)*: 50i 17M(FH) (default setting)**: Records standard image quality movies of 1920 × 1080 (60i/50i). Bit-rate: Approx. 17 Mbps (Avg.)
• 60p 28M(PS)*:
• 50p 28M(PS)**: Records the highest image quality movies of 1920 × 1080 (60p/50p). Bit-rate: Approx. 28 Mbps (Max.)
• 24p 24M(FX)*: 25p 24M(FX)**: Records high image quality movies of 1920 × 1080 (24p/25p). This produces a cinema-like atmosphere. Bit-rate: Approx. 24 Mbps (Max.)
• 24p 17M(FH)*: 25p 17M(FH)**: Records standard image quality movies of 1920 × 1080 (24p/25p). This produces a cinemalike atmosphere. Bit-rate: Approx. 17 Mbps (Avg.)

When [ File Format] is set to MP4:

• 1440×1080 12M (default setting): Records movies of 1440 × 1080. Bit-rate: Approx. 12 Mbps (Avg.)
• VGA 3M: Records movies of VGA size. Bit-rate: Approx. 3 Mbps (Avg.) *
• Notes:* 1080 60i (NTSC) compatible device,  ** 1080 50i (PAL) compatible device

General notes:

• 60p/50p movies can be played back only on compatible devices.
• Movies recorded with the [60p 28M(PS)]/[50p 28M(PS)]/[60i 24M(FX)]/[50i 24M(FX)]/ [24p 24M(FX)] /[25p 24M(FX)] setting in [ Record Setting] are converted by PlayMemories Home in order to create an AVCHD recording disc. This conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want to keep the original image quality, store your movies on a Blu-ray Disc.
• To play back 24p/25p movies on a TV, the TV must be compatible with the 24p/25p formats. If the TV is not compatible with the 24p/25p format, 24p/25p movies will be output as 60i/50i movies.
• You cannot create discs with movies recorded with MP4 recording settings using PlayMemories Home.

Drive Mode

You can set the drive mode, such as continuous or self-timer shooting.

• Single Shooting (default setting): Shoots one still image. Normal shooting mode.
• Cont. Shooting: Shoots images continuously while you press and hold down the shutter button. Hi: takes about six images per second, Lo about 3
• Self-timer: Shoots an image after 10 or 2 seconds. (selectable in submenu) You can change the angle of the LCD screen and shoot images while monitoring the image on the screen.
• Self-timer(Cont): Shoots a specified number of images continuously after 10 seconds or 2 seconds (selectable in the submenu).
• Cont. Bracket: Shoots images while holding the shutter button down, each with different degrees of brightness. (from 3 to 5 images with between .3 and 3 EV difference, selectable in the submenu.) For processing as HDR on your PC.
• Single Bracket: Shoots a specified number of images, one by one, each with a different degree of brightness. (from 3 to 5 images with between .3 and 3 EV difference, selectable in the submenu) For processing as HDR on your PC.
• WB Bracket: Shoots a total of three images, each with a different color tone according to the selected settings for white balance, color temperature, and the color filter.  (3 images with either LO small changes or Hi large changes)
• DRO Bracket: Shoots a total of three images, each at a different degree of D-Range Optimizer.

Flash Mode

Flash off;

obvious

Autoflash:

The flash works in dark environments or when shooting towards a bright light.

Fill-flash:

The flash works every time you trigger the shutter.

Slow sync:

Tells the camera to use a longer shutter speed along with a flash, and thus is better for night shots. In manual and shutter priority modes, there is no difference in flash power. But when using aperture priority, program, or auto, choosing slow sync tells the camera to use a longer shutter speed than it would ordinarily pick.What the slow sync flash mode actual does is first fire the flash for the subject exposure, then allow for a longer shutter speed that will allow for more ambient light to be captured by the sensor.

Rear Sync:

Capturing an image involves two shutter actions: one when the capture starts and on when it stops. Rear Sync tells the flash to fire right before the shutter closes. Moving objects will show a streak where they came from and a sharp image where they were at the end of the exposure. This conveys a sense of speed with moving objects. Rear Sync is a creative technique, if you’d like to know more about this type of photography, I’d suggest doing a Google search on ‘Rear Sync Flash Photography.’

 Flash compensation:

Especially when using Slow Sync or Rear Sync Flash modes, you might have to lower the power of the Flash to get a decently exposed image.

Red Eye Reduction:

This anti-Red Eye setting quickly fires the flash before your image capture starts, reducing the red-eye effect often seen when using a flash

(MENU → Camera Settings → page 3)

Focus Mode

Here, you can select how the autofocus engine will behave when you half-press the shutter button. Novice users should set into AF-A. This functionality is partly dependent on what focus area you select (see next)

AF-S:

With a half-press of the shutter button, the camera will focus only once. Suitable for capturing stills.

AF-A:

AF Automatic intelligently switches between S and C, depending on whether the camera detects movement or not. This is the standard setting and the easiest to use.

AF-C:

The camera will continuously focus on any movement when you half-press the shutter button.

DMF:

The ILCE-5100 focuses on your subject and allows you to fine-tune your focus area further using the manual focus ring on the lens.

MF:

No autofocus is used, and you focus manually using the focus ring on the lens.

Focus area

The Sony A5000 sensor has a contrast detection autofocus system with 25 points. This makes it one of the fastest and most reliable AF systems in a compact camera and is even better than some AF systems in cameras that cost over three times as much. You might think it is best to leave it on the factory ‘wide’ setting (as this uses all AF points), but for certain scenes, it is often better to use a zone or flexible spot to get it to focus on what you want.

Wide:

Wide focus area uses all focus points on the sensor. Ideal for action scenes where there is a lot of movement going on in your frame.

Zone:

Zone allows you to select one of 9 predefined zones where autofocus will be active. These zones each cover about 25% of the screen, with a slight overlap. You can quickly change the zone by pressing the multi-controller button and navigating to any of the other zones.

Center:

Focuses on whatever is centered in your images. A fail-proof way of getting the camera to focus on what you want. If you have any problems using the autofocus and are in a situation where you don’t want to miss any shots, revert to Center and just make sure you have your subject centered.

Flexible spot:

Flexible spot area selects a spot anywhere on the screen where the camera should focus. (similar to Center spot, except not.. in the center)  You can set it to small, medium or large. If you want to use this focus area, set it to medium or large, as the camera will struggle to find focus when set to small (except perhaps for close-up portraits where you’d want to focus on the iris of the eye)

Lock-on AF:

When the shutter button is pressed and held halfway down, the product tracks the subject within the selected autofocus area. Point the cursor to [Lock-on AF] on the [Focus Area] setting screen, then select the desired tracking start area using the left/right sides of the control wheel. You can move the tracking start area to the desired point by designating the area to be the flexible spot. On the Flexible Spot shooting screen, you can change the size of the AF range finder frame by rotating the control wheel.

AF Illuminator:

The AF illuminator is a little red light allowing the camera to focus more easily when the shutter button is pressed halfway. It automatically is switched off when you fully press the shutter. Leave it on.

Exposure Comp

If you find that your image is overexposed (for instance when you are shooting at large apertures for a shallow depth-of-field in bright daylight), you can tweak the exposure compensation here in a plus or minus 5 (exact EV dependent on next step) range.

ISO

You can select at which ISO value you’d like to capture your image or change the AutoISO range
I have this range set between 100-1600 as this range is virtually noise-free, and I don’t like the ISO performance above 1600. If you’re a jpeg shooter (and use built-in Noise Reduction), you might think of using a higher top value (factory setting goes up to 6400).

Metering Mode

Metering mode refers to the way the camera reads the light and sets the exposure.
In multi, it considers the whole frame and sets exposure according to internal algorithms programmed in camera.
In spot or center, the camera only considers what is in that spot or the center (per example, if your subject is completely black, the camera will try to compensate by overexposing the image).

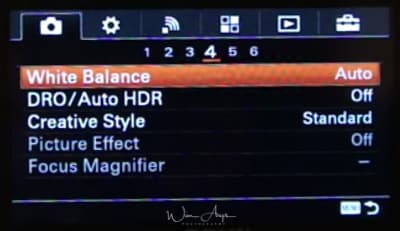

(MENU → Camera Settings → page 4)

White Balance

You can either:

• Auto (default setting): The product automatically detects the light source and adjusts the color tones.
• Daylight: The color tones are adjusted for the daylight. Shade: The color tones are adjusted for shadiness.
• Cloudy: The color temperature is adjusted for a cloudy sky. Incandescent: The color temperature is adjusted for places under an incandescent lamp, or under bright lighting, such as in a photo studio.
• Fluor.: Warm White: The color temperature is adjusted for warm white fluorescent lighting.
• Fluor.: Cool White: The color temperature is adjusted for white fluorescent lighting.
• Fluor.: Day White: The color temperature is adjusted for neutral white fluorescent lighting.
• Fluor.: Daylight: The color temperature is adjusted for daylight fluorescent lighting.
• Flash: The color temperature is adjusted for a flash.
• Underwater Auto: The color temperature is adjusted for underwater shooting.
• C.Temp./Filter: Adjusts the color tones depending on the light source. Achieves the effect of CC (Color Compensation) filters for photography.
• Custom: Uses the white balance setting saved in [Custom Setup].
• Custom Setup: Memorizes the basic white color under the light conditions for the shooting environment.

DRO/Auto HDR

DRO:

This stands for Dynamic range optimize and analyses the contrast of your scene in real-time. It produces an image with optimal brightness and recovered shadow detail. You can use this function even while the subject is moving or during the continuous shooting.

• D-Range Optimizer: Auto (default setting): Corrects the brightness automatically.
• D-Range Optimizer: Lv1 ― D-Range Optimizer: Lv5: Optimizes the gradation of a recorded image for each divided area. Select the optimization level from Lv1 (weak) to Lv5 (strong)

Auto HDR:

(not available for RAW captures) this feature Shoots three images with different exposures and then overlays the bright area of the underexposed image and the dark area of the overexposed image to create a picture with an extended range from highlight to shadow.
The highlight detail in auto HDR is better than that in DRO and with reduced noise. The shutter is released three times, so using this function for moving subjects is not recommended.

• Auto HDR: Exposure Diff. Auto (default setting): Corrects the exposure difference automatically. Auto HDR: Exposure Diff. 1.0EV ―
• Auto HDR: Exposure Diff. 6.0EV: Sets the exposure difference, based on the contrast of the subject. Select the optimal level between 1.0 EV (weak) and 6.0 EV (strong). For example, if you set the exposure value to 2.0 EV, three images will be composed of the following exposure levels; −1.0 EV, optimal exposure, and +1.0 EV

Creative Style

This menu setting allows you to select the desired image processing. You can adjust exposure (shutter speed and aperture) as you like with [Creative Style], unlike with [Scene Selection] where the product adjusts the exposure.

• Standard (default setting): For shooting various scenes with rich gradation and beautiful colors.
• Vivid: The saturation and contrast are heightened for shooting striking images of colorful scenes and subjects such as flowers, spring greenery, blue sky, or ocean views.
• Portrait: For shooting the skin color in a soft tone, ideally suited for shooting portraits.
• Landscape: The saturation, contrast, and sharpness are heightened for shooting vivid and crisp scenery. Distant landscapes also stand out more.
• Sunset: For shooting the beautiful red of the setting sun.
• Black & White: For shooting images in black and white monotone.
• Sepia: For shooting images in sepia monotone.

Contrast, Saturation, and Sharpness can be adjusted for each Creative Style item. Select an item to be set by pressing the right/left side of the control wheel, then set the value using the top/bottom side of the control wheel.

• Contrast: The higher the value selected, the more the difference of light and shadow is accentuated, and the bigger the effect on the image.
• Saturation: The higher the value selected, the more vivid the color. When a lower value is selected, the color of the image is restrained and subdued.
• Sharpness: Adjusts the sharpness. The higher the value selected, the more the contours are accentuated, and the lower the value selected, the more the contours are softened.

Picture Effect

Think of this menu as an Instagram app right in your camera, with all kinds of retro filters and effects. These are only available when quality is set to Jpeg (Not in RAW).

• Off (default setting): Disables the Picture Effect function.
• Toy Camera: Creates a soft image with shaded corners and reduced sharpness.
• Pop Color: Creates a vivid look by emphasizing color tones.
• Posterization: Creates a high contrast, abstract look by heavily emphasizing primary colors, or in black and white.
• Retro Photo: Creates the look of an aged photo with sepia color tones and faded contrast.
• Soft High-key: Creates an image with the indicated atmosphere: bright, transparent, ethereal, tender, soft.
• Partial Color: Creates an image which retains a specific color, but converts others to black and white.
• High Contrast Mono.: Creates a high-contrast image in black and white.
• Soft Focus: Creates an image filled with a soft lighting effect.
• HDR Painting: Creates the look of a painting, enhancing the colors and details.
• Rich-tone Mono.: Creates an image in black and white with rich gradation and reproduction of details.
• Miniature: Creates an image which enhances the subject vividly, with the background defocused considerably. This effect may often be found in pictures of miniature models.
• Watercolor: Creates an image with ink bleed and blurring effects as if painted using watercolors.
• Illustration: Creates an illustration-like image by emphasizing the outlines.

Focus Magnifier

When focusing manually or in DMF mode, you can set the camera to magnify a part of the screen so you can check focus. This sub-menu allows you to select the part of the image that will be magnified during shooting.

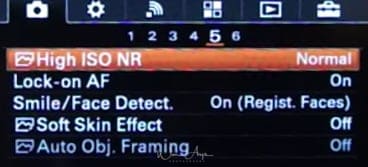

(MENU → Camera Settings → page 5)

High ISO NR

Here you can select the amount of noise reduction applied to images with high ISO settings (when quality is set to jpeg). As Sony has rather aggressive noise reduction, I would change it to Low. (if not, you run the risk of getting paint-like, smeared images at higher ISO values)

Lock-on AF

This is a very powerful autofocus feature. When turned ON, it allows you to track a subject. In the iAuto mode, you can access this feature (when turned ON and the camera is set to AF) by pressing the Center button of the multi-controller. You’ll see a square on your screen, then center your desired tracking subject and the camera will continue to track it, even when it exits your frame and reappears.

Smile/Face Detect

This is another powerful feature. It can be set to automatically detect on focus on (registered) faces and enable a function called Smile Shutter. When the latter is enabled, the camera will automatically capture an image when a smile is detected. Did I hear you say Selfie? Yes, it’s the ultimate selfie tool, along with the pivoting screen.

Soft Skin Effect

If you’re using this camera mainly for pics of friends and family, this is an excellent feature, as it will soften and smooth skin tones make you and your beloved ones look their best. (only available when quality is set to Jpeg)

Auto Object Framing

When enabled, the Sony A5000 will automatically crop your captured image to what it deems best. Meaning it will cut the picture for a nice composition. Only available for Jpegs, though, a nice feature if you don’t want to bother too much with the technical side of photography.

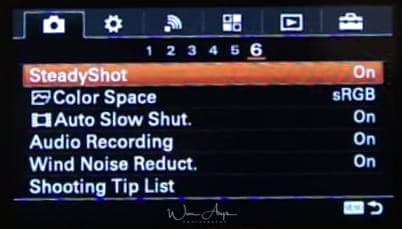

(MENU → Camera Settings → page 6)



Steady Shot

You can turn the lens image stabilization ON or OFF here. Should be OFF for taking time-lapses with the app for example.

Color Space

You can choose between Standard and Adobe (extended color range)RGB. If you don’t know what this means, leave it to standard.

Auto Slow Shutter (movie mode)

Sets whether to adjust the shutter speed automatically during video recording in case if the subject is dark/ Set to ON.

Audio Recording

You can switch off audio recording in movie mode.

Wind Noise Reduction

This helps reduce noise from the wind during video recording. O

Shooting Tip list

View all shooting advice on screen when you use the A5000

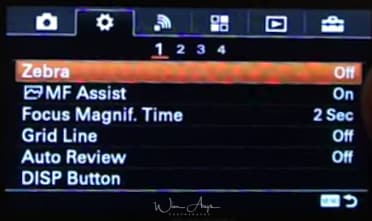

(MENU → Custom settings (wheel) → page 1)

Zebra

The zebra function shows a zebra pattern on the screen while shooting in any area that is in danger of highlight clipping. You can switch this OFF or anywhere in a range between 70 and 100.The Zebra Pattern is a highlight warning indicator that is common in video cameras. It does not control exposure but just warns you that your highlights are blown out. It is not recorded into the resulting image.I have it set halfway at around 75, and it is a very useful indication of correct exposure of the full picture. As I capture in RAW, I am very careful not to have any highlight clipping, to be able to recover highlights in Lightroom possibly entirely.

MF assist

This works in conjunction with the Focus Magnifier on Page 5 of the camera settings. You might remember that you can select the area to magnify there when using manual focus (MF). MF assist will need to be turned on if you want to use this feature.

Focus Magnif Time

You can set how long to hold the magnified area during MF assist. 2 sec, 5 seconds or no limit. 2 seconds is how I have it set up.

Grid Line

Having a grid line on your screen is a helpful aid for the composition of your image.
The human brain is hard-wired to recognize the structure, and most people find a well-composed image more eye-pleasing.
During photography history, rules have been developed on how to compose the different elements best within a scene. Many landscapes you’ll see have the horizon run through the middle of the image for instance, but this is merely composition in its simplest form. Many photographers with a thorough understanding of these techniques go far beyond that.
A good starting point is using the in-camera grid to make your brain aware of the possibilities in composition.
The Rules of 3rds, Square and Diag +square are available in the Sony Alpha ILCE-5100.

Marker settings

Sets the markers to be displayed while shooting movies.

• Center: Sets whether or not to display the center marker in the center of the shooting screen.
• Off (default setting) / On Aspect: Sets the aspect marker display. Off (default setting) / 4:3 / 13:9 / 14:9 / 15:9 / 1.66:1 / 1.85:1 / 2.35:1
• Safety Zone: Sets the safety zone display. This becomes the standard range that can be received by a general household TV. Off (default setting) / 80% / 90%
• Guideframe: Sets whether or not to display the guide frame. You can verify whether the subject is level or perpendicular to the ground. Off (default setting) / On

Auto Review

Select the amount of time the camera displays your image directly after capturing the image. 10, 5 and 2 sec is available, or you can turn this feature OFF if it annoys you.

Disp button

Selects the functionality (what is shown) on the screen when you press the DISP button (on the control wheel). You can choose Graphic Display, all info; no dips info and histogram.

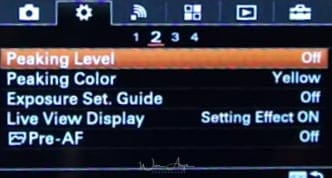

MENU – Custom Settings – page 2

Peaking Level

• Peaking Level is a manual focusing aid that works when you have your camera set to MF or DMF.
• You’ll see a type of noise outlining the parts of your image where the focus lies; you can adjust the sensitivity to high, mid or low.
• Which setting is best depends on what lens you use, as with a sharper lens it can be configured to low, while more soft lenses benefit from a medium or high setting to clearly visualize what you’re focusing on.

Peaking Color

You can choose the color of this Peaking between Red, white and yellow. I have it set to red, as this contrasts nicely with most scenes you capture.

Exposure set guide

Sets the guide displayed when exposure settings are changed in the shooting screen.  Excellent tool when you’re getting to know the functionality of your new camera. If you’re familiar with Sony’s feature, turn it OFF.

Live view Display

Live view display allows you to see the image you’re going to capture with the settings you have dialed in like aperture and shutter speed. Some users report easier auto-focussing in low-light when it’s turned OFF, and you’d need to turn it off when using external flashes too that can’t be used with Sony’s TTL (through the lens) functionality.

Pre AF

When pre-AF is set to ON, the camera will continuously focus, even without half-pressing the shutter button. This can be draining to the battery, especially when using some lenses like the Zeiss Touit range. Set it to OFF.

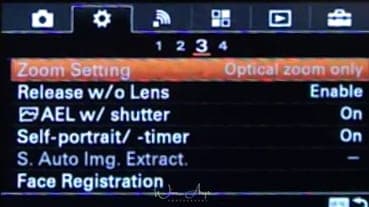

MENU – Custom Settings – page 3

Zoom settings

Set to Optical zoom only (using the optical zoom capabilities of your lens. If you set this to digital zoom, the camera will be basically cropping pixels out.

Release without lens

Makes it possible to capture images even if a lens is not supported by the camera. (Like when using an adapter with vintage lenses)

AEL with shutter

Selects whether to fix exposure automatically when you press the shutter button halfway down. Leave ON.

• Auto (default setting): Fixes the exposure after adjusting the focus automatically when you press the shutter button halfway down when [Focus Mode] is set to [Single-shot AF]. When [Focus Mode] is set to [Automatic AF], and the product determines that the subject is moving, or you shoot burst images, the fixed exposure is canceled.
• On: Fixes the exposure when you press the shutter button halfway down.
• Off: Does not fix the exposure when you press the shutter button halfway down. Use this mode when you want to adjust focus and exposure separately.

Self-portrait timer

You can change the angle of the LCD screen and shoot images while monitoring the image on the screen.

1.  Tilt the LCD screen 180° upward, and then point the lens at yourself.
2. Press the shutter button. The product starts the self-timer shooting after three seconds. Hint If you want to use another Drive Mode than the 3-second self-timer mode, first set [Selfportrait/ -timer] to [Off], then tilt the monitor upward approx. 180 degrees.
3. Hint If you want to use another Drive Mode than the 3-second self-timer mode, first set Self-portrait/ -timer to Off, then tilt the monitor upward approx. 180 degrees.

S Auto Img Extract

When in Superior Auto, the camera often takes multiple images and combines them into one (jpeg only). You can either save all images captured (OFF) or only the combined image (ON). Turn it OFF, I’ve tried this functionality, and the combined image feature does not work well.

Face Registration

This is where you can register faces; it works only when face recognition is set to ON (registered faces). This is an interesting functionality, as you can register faces of your subject (like at a wedding the bride and groom) and the camera will automatically detect these registered faces and give autofocus priority to them. You can register up to 8 faces (by taking a picture of them within this menu) and set a priority order.
Works well, and helps to get the right people in-focus in busy shots.

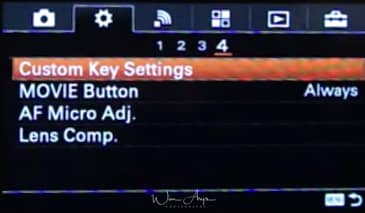

MENU – Custom Settings – page 4

Custom keys setting

Assigning functions to the various keys allows you to speed up operations by pressing the appropriate key when the shooting information screen is displayed.

Movie button

Sets whether or not to activate the MOVIE button.

• Always (default setting): Starts movie recording when you press the MOVIE button in any mode.
• Movie Mode Only: Starts movie recording when you press the MOVIE button only if the shooting mode is set to Movie mode.

AF micro adjustment

This is only necessary when using a Sony adapter (like the LAEA4) with supported A-mount lenses. These lenses can auto-focus slightly off, and some micro adjustment can help getting the focus just right.

Lens Comp

Lens compensation corrects certain lens issues like shading, chromatic aberrations, and distortion. If you shoot jpeg, it’s advisable to set them all to auto (works only with supported lenses), in RAW, turn them all OFF as you’ll probably want to take care of these lens-related problems using a RAW editor on your desktop or laptop.

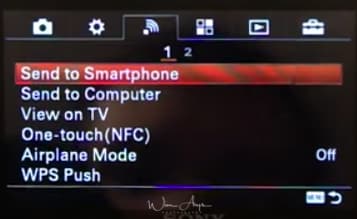

MENU – Wireless functionality – page 1

Send To Smartphone

• You can send one or several images directly to your wireless device (phone or tablet) by pressing this button.
• You can either decide to choose which images you want to transfer on the camera or on the wireless device (via the Sony PlayMemories app, available for free in the apple or android store).
• You’ll have to connect the camera via Wifi first (it makes a Wifi access point), using the instruction on the A5000 screen.
• It works just like connecting to any other access point with your phone or tablet.
• You should do this as quickly as possible, just to get it out of the way.
• When your phone has wirelessly connected to the camera once, and you’ve entered the password, it will remember this, and make it a lot faster to connect later.

Send to Computer

You’ll need to physically connect the computer to the camera using the supplied USB cable, and you can push selected pictures to your Sony PlayMemories desktop software (installed from the CD or downloaded from their website). This can even be set up to continue pushing images after the camera has turned off.

View On TV

If you have a Wifi-enabled TV, you can view images and slideshows directly from your camera through your home wireless network.

One Touch NFC

Enables Quick, one-touch connection (as opposed to first accessing the camera’s wireless network and then navigating to the Playmemories app) with NFC (near-field communication) capable devices.

I have not tried this (as my iPhone does not have NFC) but it looks a lot easier to use.

Airplane Mode

Disables all wireless functionality, just like airplane mode does on your phone.

WPS Push

If your access point has the WPS button, you can register the access point to the camera easily by pushing the WPS button.

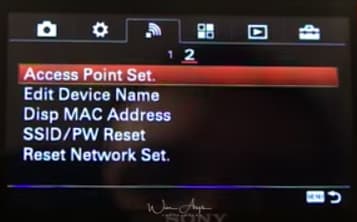

MENU – Wireless functionality – page 2

Access Point Set

Here you can setup an access point for your camera to the internet.

It enables the Sony ILCE-5100 to install PlayMemories apps from the internet directly. Works just like setting an access point (WiFi connection) on your phone.

Edit Device name

If you wish, you can change the name of the Device Access point) perhaps to make it easier to identify which A6000 is yours in certain situations.

Disp MAC address

You can see the MAC address of the camera here, might be useful for some advanced configuration or troubleshooting

SSID, password reset

Reset the name and password of the wireless network the camera creates.

Reset Network set

Resets all network settings.
If something does not function properly, and you want to start from scratch, can be useful.

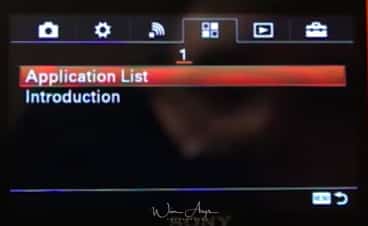

MENU – Playmemories settings- page 1

Application List

You’ll find The Smart remote control camera app (which allows you to use your phone as a remote control via PlayMemories phone app for iPhone and Android) and the Playmemories Camera app here.

You can access your online PlayMemories account here, or create an account (once you’ve set up your camera connection with your Wifi network).

You’ll also be able to download new apps available for purchase in the Sony Playmemories online app store like the Time-lapse and smooth reflection app.

If you do not want to connect your camera to the internet, you can always install new apps (and updates) if you connect the camera to your Mac or PC with the supplied USB cable, using the Sony PlayMemories desktop application.

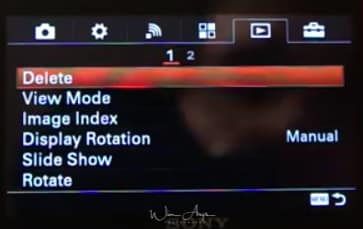

MENU – playback options – page 1

Delete

Delete one or multiple images stored on your SD card.

View Mode

Select how the camera will arrange captured images in the viewing browser.

Image Index

Select whether you want the image browser to display 12 (larger) or 30 (smaller) images per page.

Display rotation

Select whether you want the camera to automatically rotate images when you rotate the camera or not.

Slide Show

Select whether you want the camera to repeat slideshows when all pictures are viewed or not, and choose the interval between slides.

Rotate

Change the orientation of images in-camera.

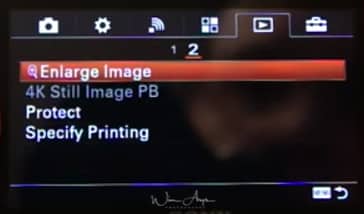

MENU – playback options – page 2

Enlarge

Select an image and enlarge a portion of that image. Useful for checking details and focus.

4K Still Image PB

Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.

Protect

Protect images (selectable or per date) from accidentally being erased

Specify Printing

Specify Printing is a feature that allows images to be marked for printing later. Registered images are displayed with the DPOF mark. (DPOF stands for Digital Print Order Format)

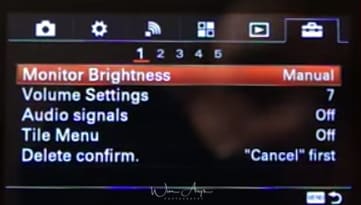

MENU – Setup – page 1

Monitor Brightness

Manually set the Monitor brightness (recommended leave to zero) or change to a brighter setting for Sunny Weather.

Monitor Brightness

Set to Auto which adapts to the lighting circumstances or manually changes to your preferred setting. There are color and greyscale charts displayed on the screen to allow you to set it up to your liking.

Volume settings

Change the playback volume for recorded video or demos.

Audio Signals

You can turn off audio signals like the beep when the camera achieves focus. Useful if you want a more stealthy operation (although you’ll still hear the second curtain shutter).

Title Menu

choose between tiles or a tiled front page when accessing the MENU or a direct tab style menu layout

Delete Confirm

When deleting images on your SD card, you’ll have to confirm every deletion (to make sure you don’t accidentally delete anything). You can turn Off this confirmation here if you wish.

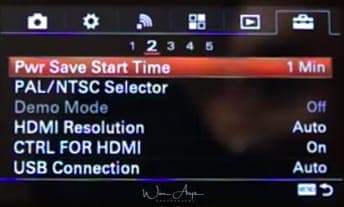

MENU – Setup – page 2

Pwr Save Start time

Selects the time it takes for the camera to go into sleep mode if you don’t use it.

PAL/NTSC mode

change to either of this broadcasting standards according to which region of the world you live in

Remote CTRl

When the Sony A5000 is connected via USB to a PC, you can use the Remote Camera Control (RCC) software to take pictures or change settings on the camera from the computer. ( Both Mac and PC versions downloadable via the Sony website). If you would like to do so, you’ll need to turn this ON here. There is now a special version of Capture One available (free) for Sony cameras which also has this functionality.

HDMI Resolution

Set the Resolution of images and video sent to your TV with an HDMI cable (1080p or 1080i)

CTRL for HDMI

With the “Control for HDMI” function, Sony BRAVIA Sync helps communicate with BRAVIA Sync-compatible equipment using HDMI CEC.

USB connection

Selects what will happen when you connect your camera to your PC or MAC.

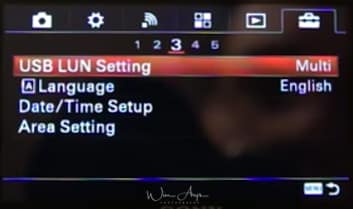

MENU – Setup – page 3



USB LUN Setting

Improves compatibility with external devices by limiting the functions of the USB connection.
Older devices that are not able to connect to the camera might work when set to single. Otherwise, use Multi.

Language

Set your preferred language. The advantage of setting it to Eglish is that you’ll find much more information online when you need any troubleshooting.

Date Time Setup

Change date, time, date format and Daylight savings time

Area setting

Select your region, or change region when abroad, the camera will automatically change time and date for you.

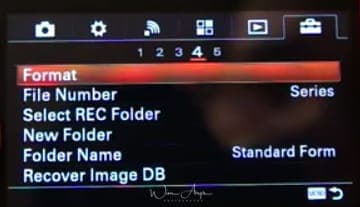

MENU – Setup – page 4

Format

Format your SD card before use; this will erase any images still on the memory card.

File Number

Number your files according to number of shots or reset it to start from 1

Select REC folder

Selects where the camera will store newly captured images

New Folder

Make a new folder for easily organizing events and locations

Folder name

Choose whether to have folder names in standard form (DSC) or create a new one by date. Setting folders by date will make organizing your images easier.

Recover Image DB

If you have a storage card error, you can try to rebuild the database to possibly retrieve lost images.

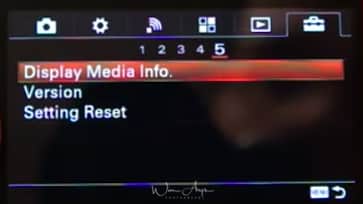

MENU – Setup – page 5

Display media info

You can check how much space is left on your SD card (have pictures in your desired quality and how many minutes of video)

Version

Check what version of the operating system your camera and lens are running. Sony sporadically releases updates with new features, so it might be worth checking if any new firmware versions are available.

Setting Reset

Fully resets the camera to factory settings.

The Next Chapter is about the different Shooting Modes Available, another concept that is necessary to understand fully.

The A5000 camera includes all the usual shooting modes plus some useful additions, although they are not accessible via the usual dial on top.

To switch between shooting modes, press the select button in the middle of the control wheel at the back of your camera when the camera is turned on. Then use the scroll wheel to select a mode and press the Select button to switch to that mode.

shooting modes available via the select button ( or via MENU → Camera Settings → Shoot Mode→ desired setting)

Intelligent Auto:

This mode automatically detects the type of scene you’re shooting and adjusts the scene automatically. You’ll see the icon for the recognized scene appear on the top right hand of the screen.
These scenes are the same ones which can be selected individually in SCENE mode.
The Sony A5000 will also use the most appropriate FOCUS AREA, and ISO value (the ISO range cannot be changed in iAuto though).

Works for both RAW and JPEG shooting.
Disadvantage: ISO range is fixed to 50-6400 (you can’t change the range).

Superior Auto:

Superior Auto is similar to iAuto, as it also detects scenes automatically, except it uses more complex processing.

This includes composite layering (layering different shots on top of each other for HDR style pictures) and automatically choosing what it thinks is the best image.

You can either choose whether you want the camera to save all images captured or just the composite image, by selecting S. Auto Img. Extract in the MENU system.

Disadvantage: ISO range is (like in iAuto) fixed and only usable for jpeg shooting.

P (Program Auto):

Program (P) mode automatically adjusts exposure and aperture according to your desired setting.
See this as a more advanced iAuto mode.
tip: lower the automatic ISO range to 100-1600 for better image quality (ISO-Auto range in MENU SYSTEM)

A (Aperture Priority):

Allows you to adjust the aperture and shoot, for example when you want to blur the background (large aperture like f/1.8), or want a sharp corner-to-corner image (around f/5.6-f/8).

The aperture value can be changed during movie recording, a technique that will be familiar to videographers.
Smaller F-value: The subject is in focus, but objects in front of and beyond the subject are blurred (what is called Bokeh).
Larger F-value: The subject and its foreground and background are all in focus.
If proper exposure cannot be set, the shutter speed on the shooting screen blinks.

S (Shutter Priority):

The go-to mode if you cant to shoot fast-moving subjects, by manually adjusting the shutter speed. You can express the movement of a moving subject in various ways by adjusting the shutter speed, for example, at the instant of the movement with a high-speed shutter, or as a trailing image with a low-speed shutter. The shutter speed can be changed while recording movies. The aperture is automatically adjusted to obtain proper exposure.

If proper exposure cannot be obtained, the aperture value on the shooting screen blinks.

• Use a tripod to prevent blurring when you use a slow shutter speed.
• The SteadyShot warning indicator does not appear in shutter speed priority mode.
• When the shutter speed is 1 second(s) or longer, noise reduction will be applied (Long Exposure noise reduction in the Menu ON/OFF) after shooting for the same amount of time that the shutter was open. This will temporarily freeze your camera, and you want to be able to capture images while noise reduction is in progress.
• The brightness of the image on the monitor may differ from the actual image being shot (there is no Live view on Sony cameras for long exposures).

M (Manual Exposure):

Both shutter speed and the aperture value can be changed in this mode, also during movie recording.

Press the bottom side of the control wheel to select the shutter speed or aperture value, then turn the control wheel to select a value.
When ISO Auto is used, the ISO value automatically changes to achieve the appropriate exposure using the aperture value and shutter speed you have set.

• If the aperture value and shutter speed you have set are not suitable for appropriate exposure, the ISO value indicator will blink.
• When the amount of ambient light exceeds the metering range of the Metered Manual, the Metered Manual indicator flashes.
• The SteadyShot warning indicator does not appear in manual exposure mode.
• The brightness of the image on the monitor may differ from the actual image being shot.

Bulb Mode in Manual exposure

Bulb is the mode used to shoot a trailing image of a subjects’ movement with a long exposure time. Think light trails from cars or fireworks.

1. Press the bottom side of the control wheel to select the shutter speed, then turn the control wheel counterclockwise until BULB is indicated.
2. Press the shutter button halfway down to adjust the focus.
3. Press and hold the shutter button for the duration of the shooting.
4. As long as the shutter button is pressed, the shutter remains open.

Tips:

• Use a tripod for long exposures.
• Use the PlayMemories remote or a wired remote control to eliminate any movement of the camera.
• After shooting, noise reduction will be applied (as noise builds up quickly with long exposures). This will take as long as your long exposure did, and you won’t be able to use the camera until this is finished.

Can’t get the shutter speed to Bulb Mode? Check these settings and turn them OFF:

• Is Smile Shutter activated?
• Is Auto HDR activated?
• Is Picture Effect is set to HDR Painting or Rich-tone Mono?
• Is Drive Mode set to Cont. Shooting, Cont. Bracket or Self-timer(Cont)?

Movie:

Although you can capture movies in any mode, it is easiest to change all related settings for movie recording here. You can adjust the shutter speed or aperture value to your desired settings for recording movies. You can also check the image angle before shooting.

Press the MOVIE button to start recording and again to stop recording

Menu:

• Program Auto: Allows you to shoot with the exposure (both the shutter speed and the aperture value) adjusted automatically. Other settings can be adjusted manually, and the settings are retained.
• Aperture Priority: Allows you to shoot after adjusting the aperture value manually.
• Shutter Priority: Allows you to shoot after adjusting the shutter speed manually.
• Manual Exposure: Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture value) manually.

When a zoom lens is mounted, you can also zoom by operating that lens. When a motor zoom lens is mounted, move the zoom lever of the zoom lens to enlarge subjects.

Sweep Panorama:

Allows you to shoot a panoramic image by compositing the images.

• Panorama mode will capture a series of images in succession.
• You’ll be guided through this process using an arrow on-screen that shows the direction and speed of the camera panning.
• The A5000 will automatically detect and capture the series of images while panning.
• Afterward, it will stitch together all these images into a wide view of the scenery and save it as a Jpeg.

TIP: Panorama size (standard or wide) and panning direction can be changed in the MENU on page 1.

Scene Selection Mode (SCN)

Allows you to shoot with preset settings according to the scene. iAuto and Superior Auto detect these scenes automatically for you and applies the presets it deems best and does a very good job at that. However, in certain circumstances (when you know what you are going to capture) it is better to select the appropriate scene yourself, as it takes the guessing work out of the equation.

The Sony A5000 has a decent range of well-designed presets:

Portrait:

Blurs background for a nice Bokeh, and sharpens the subject. How good this will look depends largely on the lens you’re using. A zoom is less suited to this kind of photography, best use a prime, fast lens.

This preset accentuates the skin tones softly (you can select skin softening for all Modes in the Menu system too).

Sports Action:

Shoots a moving subject at a fast shutter speed (lso that the subject looks as if it is standing still. AF-C and continuous shooting hi is on, so you’ll be able to snap away while the shutter button is pressed.

Macro:

Shoots close-ups of the subjects, such as flowers, insects, food, or small items.

Landscape:

Shoots the entire range of scenery in sharp focus with vivid colors. The camera will go to a smaller aperture to achieve this, as lenses are sharper corner-to-corner at smaller apertures.

Sunset:

Shoots the red of the sunset beautifully.

Night Scene:

Shoots night scenes without losing the dark atmosphere. Will go to higher ISO values and larger apertures to achieve a useable shutter speed, enabling you to capture sharp images without blur. The A5000 does have its limitations when it comes to shooting dark scenery.

Hand-held Twilight:

Shoots night scenes with less noise and blur without using a tripod. A burst of shots are taken, and image processing is applied to reduce subject blur, camera shake, and noise. This does not work well in my opinion.

Night Portrait:

Shoots night scene portraits using the built-in flash.

Anti Motion Blur:

Shutter Priority mode, which will use the fastest shutter speed possible, to counter motion blur.

Best A5000 for shooting portraits and make-up

Shooting portraits and makeup is a challenge for many photographers. Firstly we need to think about what we want to achieve. Do you want a blurred background? Then you’ll need a lens with a large aperture like the Sigma 60mm f2.8 DN or the Sony Sonnar T * FE 55mm F1.8 ZA. As a rule of thumb, the larger your aperture (the f-number), the more separation between subject (focus point) and background you’ll have. If you’re going for maximum sharpness and detail, you can stop down the lens (change aperture) to around f/8.

Shooting at smaller apertures means that your lens will allow less light to enter the sensor, and a flash might be a good investment. I recommend a brand called Godox (or flashpoint/Neewer these are all the same brands) and also a ring flash diffuser to get a soft and even illumination of the face.

To get real looking colors, It’s a good idea to set your creative style ((MENU → Camera Settings → page 5) to standard and find a suitable white balance (also on page 5). Try the ‘Fluor’ settings if you are shooting under fluorescent light.

Other things you can consider are shooting in RAW so you have more control over white

shooting in RAW so you have more control over white balance in Adobe Lightroom (or other RAW editors).

Buy a so-called gray card for even more precise colors using custom white balance in your camera.

Calibrate your monitor with something like Datacolour Spyder to make sure your monitor is displaying the colors as true as possible.

Conclusion

The Sony A5000 is certainly a very capable camera, and image quality rivals that of the A600 and A77II. At this price-point, that is almost unbelievable, and I’m sure many novice photographers will jump at the chance to get all this technology.

You’ll probably start using it in iAuto mode, and this is well-implemented, except for the fact that the ISO range cannot be changed. After you’ve familiarized yourself with this mode, it is well worth getting to know the advanced functionality of this camera, as it often will yield better results than just setting it to iAuto.

If you have any questions, feel free to comment below.
